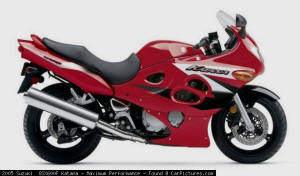

Suzuki GSX600F Katana, 98-06
Factory Pro Series "S23"

The Carb Recal Kit and the Ignition Advance Rotor perks up the low-end and midrange power and response for quicker warm-up and more response. The Transmission Detent Spring Kit really puts "snap" into the shifting.

	Factory Pro's own Supersport Carb Recalibration Kits (carb jetting kit)		Factory Pro's own Nickel Plated Needle jets Improve mileage and make run smoother at low rpm
	Factory Pro's own Shift Improvement Kits		Tuning Tools
	Factory Pro's own Ignition Advance Rotor fixed or patented adjustable		Factory Pro's own Long Boy Fuel Screw set

Fuel Screws: "Long Boy" E-Z finger adjustable

Katana 600
" Long Boy" Fuel Screw Set
(set of 4 4030M screws, 4 o-rings, 4 springs, 4 special washers)
replaces 13279-33E00

$89.95

Long Boy

Extended Fuel Screw Set

Having a hard time adjusting your fuel screws?
Don't have a multi-bent twisty windy screwdriver to find that "all important for cruise" Fuel Screw adjustment?

Factory Pro's 4 pc. "Long Boy" Fuel Screw Set allows the owner to reach in and quickly adjust your fuel screws for best cruise and idle quality.

Contains:
4 each Factory Pro 4030M "Long Boy" Katana 600 fuel screws
4 new fuel screw springs
4 new special fuel screw washers
4 new fuel screw o-rings
4 fuel screw shipping protection sleeves

Carburetor Tuning Kits

CRB-S23-1.0 $139.95
1. Choose your shipping method
2.

Standard drop-in carb kit

The kit, when properly tuned, adds more low-end / midrange and if the proper main jet is selected, more top-end power. Easy to install and tune - no slide drilling!

Replacement Needle Jets for carb

GSX600F Katana Needle Jets
(nickel plated, stock replacement)

pn: CRZ-EMU-100192k
(replaces 09494-00921)

$132 / 4 pcs

Replacement nickel plated needle jets
(not the long, skinny needle, this is the part that the needle goes into)

Stock replacement needle jets for high mileage bikes

Help cure over rich running at low rpm. and poor mileage.

pn: CRZ-EMU-100192k
(replaces 09494-00921)

<<<<<< This is enough wear to cause rich lowend cruise

Ignition Components

RTR-SUZ-4 $89.95

Backordered

1. Choose your shipping method
2.

Ignition Advance Kit

This simple, bolt-on advance kit advances the timing. With stock engines with stock compression ratios, there is more power everywhere. Part throttle power is better - helping corner exit speeds. Improved in-town drivability and quicker warm-up. REQUIRES an AIR IMPACT wrench to install.
The RTR-SUZ-4 replaces OEM #19C00 and #19C20 original ignition triggers.

Transmission Shift Improvement

SHFT-PRO-SUZ-3 $139.95

1. Choose your shipping method

2.

Trans Detent Spring Kit

Includes Microbearing Detent arm and FP detent spring - Make shifting MUCH quicker and virtually eliminates missed shifts.

Billet Engine Covers - Factory Pro exclusive!

Billet Engine Cover Set
COV-S06-LH-KT
COV-S06-RH-KT

$249.95 LH

$129.95 RH

Make your Katana stand out from the rest of the crowd!
Beautiful alloy cover set, milled from fine grain base material.
Just about every magazine "project Katana" uses these covers. No "project bike" would be complete without these covers - and either would yours!

Tools

TL-float height gauge $59.95

1. Choose your shipping method

2.

The only way to accurately measure float heights. Works on nearly every carburetor.

Looking for your idle mixture screws? Here is where they are located:

Misc. Information
Ignition trigger OEM part numbers
model/year	years	original rotor number / notes	suggested to use:
GSX600F Katana (unrestricted)	88-95	33120-19C00	Use Factory Pro RTR-SUZ-4
GSX600F Katana (unrestricted)	96-00	33120-19C20 Similar timing as "19C00", cosmetic change.	Use Factory Pro RTR-SUZ-4
GSX600F Katana (CA model)	88-93	33120-48B20 Upgrades to 49 state low rpm timing. Improves low rpm / off-idle response.	Use Factory Pro RTR-SUZ-4
GSX600F Katana (CA model)	94-96	33120-26D00 Upgrades to 49 state low rpm timing. Improves low rpm / off-idle response.	Use Factory Pro RTR-SUZ-4
GSX600F Katana (CA model)	97-00	33120-19C20 Similar timing as "19C00".	Use Factory Pro RTR-SUZ-4

Absolutely NO carb parts sold in California.
