GSX-R750 88-89 49 state 88-92 California (Ca used 36mm carbs for 4 years) We are proud of this kit - The winner of multitudes of AMA Pro races and the overwhelming majority of amateur, WERA AND AMA Pro races in the United States in that time. This kit was the kit that solved the cylinder head cracking, spark plug electrode breaking and sensitivity to crosswinds (at Willow Springs Raceway, turn 8, for instance)  that the other brand kits caused under race conditions. The reason? Low cost dealership level dynos were used to design the "other" carb kits. This was the kit that many people who we didn't sponsor and weren't running "our" logos on the side of their bikes, actually ran.

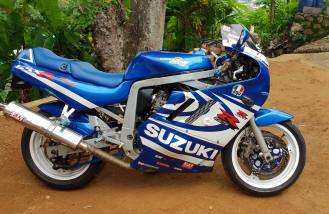

Laurent Desnnousse / Seychelles

Background "Nugget"!

The first symptom of a detonation problem with the dj kit were that the spark plug side electrodes would fall off during a race. The "99.9%" reason why that happens is because of the always harsh detonation hits that occurred at some time during engine running. At first (many years ago), we thought that...... Ummm...... Maybe they used bad spark plugs?
I didn't know - In hindsight, we only had that problem, maybe 2-3 times in 2 years (never using or even testing the dj kit in a racebike) - but, after hearing about the spark plug breakage on Jeff's and Chris' bike that (that we didn't build or tune) and the same on other bikes that the southern CA builders built - I always ran dual electrode plugs, so even if we caught whatever malady that they had, we'd still have a spare electrode........  (sometimes my mind goes in the right direction.....)

We never really had a power or reliability problem and our bikes were fully competitive......  and they didn't break....
:-)
Then the stories on bad cylinder heads and cylinder head cracking from the spark plug hole to a valve seat started appearing - Suzuki getting blamed for "bad cylinder head castings".

So...... after some time during the first year, it seemed to be a "given" by the "expert tuners" that:

Myth:
Suzuki made bad cylinder heads.
You couldn't buy spark plugs that would live in the mysterious "short stroke" 750's.
There was something "special and magical" about 88 gsxr750's - that they were unbelievably "sensitive" to float bowl vent tube routing and that the carb vents MUST be routed... behind the bike - on the left side of the bike - the right side of the bike - behind the fairing - away from rider's knees...... (take your pick and change it every race cause it didn't work to actually fix the problem).

Fact:
Most of the bikes that had problems ran dynojet kits.
What works best on a dynojet dyno does not work best in the real world. Simple fact - even with their latest greatest inertia dynos with eddy current brakes hung on them - tuning to fictitious "A/F Ratios -
Riders, when given a chance, usually prefer EC997 dyno tuning results -

The dynojet kits had "stepped" needles and at part throttle, the carbs would alternate between too rich (skinny part of step) and too lean (fat side of step). Ours were smoothly tapered and delivered a more even amount of fuel at every throttle position,

Most tuners would question a needle with distinct steps - but - if they ran it on a common dealership level dynojet dyno - it "worked".... so they didn't question it - a few of the luckier ones stopped using the dj kit and switched over (and most still ran their decals because they had a dynojet dyno....).

When asked "What do you about the spark plug and cylinder head cracking?"
I told them that I didn't have any problems (I'm sure that many didn't believe me) but that we didn't use a dj kit and if they knew so much that they refused to take that hint and didn't think that that was the problem,  I told them that retarding the ignition timing would help their problem.......

And the 750 stock engine class bikes in our northern Ca area that were quicker than ours the next year in 89?
We found out several years later that they had Cosworth 883cc high compression big bore kits in them.....

So much for head to head competition!!

Finger Adjustable "Long Boy" extended fuel screws
Long Boy Fuel Screw Kit pn: CRZ-SCR-5020m replaces 13279-47070 fits both CV and original Smoothbore carbs  $89.95  with 4 new screws, springs, washers and o-rings 1. Choose your shipping method 14.00 Domestic USA Standard Ground 48.00 International USPS Express, tracked 44.50 Russia, USPS Priority, no tracking 4.00 each additional item in shipment 2.	"Long Boy" Finger adjustable extended Fuel Screws Frustrated with trying to find an "almost 90 degree"  screwdriver to fine adjust your fuel screws for best idle and cruise? Use Factory Pro's new "finger adjustable" fuel screws to adjust fuel screws for best throttle response. Traveling to high altitude? It's easy to lean out the lowend temporarily. Make your life easier! Installation: Remove old short stock fuel screws, old o-rings, old washers and old spring. The o-ring might be stuck in the carb, so, take a light and make sure it's really out if it didn't come out with the screw (or you can't find it after you took out the screw) Use a small bent wire to pull it out if it doesn't drop out. Keep the old parts for "spares". gsxr750 screw assembly comes with: 4 Long Boy fuel screws   4 new o-rings 4 new washers 4 new springs
Item	Description
CRB-S05-1.0 $139.95 for when you run a stock airbox and a stock or aftermarket stock replacement air filter. 1. Choose your shipping method 14.00 Domestic USA Standard Ground 48.00 International USPS Express, tracked 44.50 Russia, USPS Priority, no tracking 4.00 each additional item in shipment 2.	Standard drop-in carb kit Adds more low-end / midrange, if the proper main jet is selected, more top-end power. Easy to install and tune - no slide drilling! Note! When replacing a dj kit with Factory Pro components, be sure to replace the emulsion tubes with stock, Suzuki tubes (available from Suzuki). The dynojet emulsion tubes will not work with standard needles. The Mikuni emulsion tubes have ID numbers and the dynojet tubes are not marked with any part number. **36mm carbs**
CRB-S05-1.1-TI $159.95 titanium needles for when you run a stock airbox and a stock or aftermarket stock replacement air filter. **36mm carbs** 1. Choose your shipping method 14.00 Domestic USA Standard Ground 48.00 International USPS Express, tracked 44.50 Russia, USPS Priority, no tracking 8.00 each additional item in shipment 2.	Ti Pro Kit carb kit Titanium needles and Stainless steel allen screws for the float bowls. Adds more low-end / midrange, if the proper main jet is selected, more top-end power. Easy to install and tune - no slide drilling! Note! When replacing a dj kit with Factory Pro components, be sure to replace the emulsion tubes with stock, Suzuki tubes (available from Suzuki). The dynojet emulsion tubes will not work with standard needles. The Mikuni emulsion tubes have ID numbers and the dynojet tubes are not marked with any part number.
CRB-S05-3.0   $149.95 for when you remove  the airbox and run "pods'. **36mm carbs* 1. Choose your shipping method 14.00 Domestic USA Standard Ground 48.00 International USPS Express, tracked 44.50 Russia, USPS Priority, no tracking 4.00 each additional item in shipment 2.	Config 30 carb kit For the best top-end power (+2-3hp). Good low-end and midrange. Requires removal of stock airbox and running BMC xxxx or K&N equivalent individual air filters. Otherwise, it is a drop-in kit. Note! When replacing a dj kit with Factory Pro components, be sure to replace the emulsion tubes with stock, Suzuki tubes (available from Suzuki). The dynojet emulsion tubes will not work with standard needles. The Mikuni emulsion tubes have ID numbers and the dynojet tubes are not marked with any part number.
RTR-SUZ-2 Backordered 1. Choose your shipping method 14.00 Domestic USA Standard Ground 48.00 International USPS Express, tracked 44.50 Russia, USPS Priority, no tracking 8.00 each additional item in shipment 2.	Ignition Advance Kit This standard kit rotor advances the timing 4 degrees. With stock engines with stock compression ratios, there is more power everywhere. Part throttle power is better - helping corner exit speeds. Improved in-town drivability. (note: website corrected 10/20/2003 - Changed to RTR-SUZ-2 from rtr-suz-61-04)
F-Pro Shift Kits
(sample pic, not actual items) SHFT-PRO-SUZ-3-steel   $139.95  includes: F-Pro steel microbearing detent arm, F-Pro shift spring, oil pan gasket (add $20 for Hybrid ceramic bearing upgrade) ("Legacy kit" - allow 1-2 weeks for building) 1. Choose your shipping method   16.00 Domestic USA Standard Ground 48.00 International USPS Express, tracked 48.50 Russia, USPS Priority, no tracking 4.00 each additional item in shipment 2.	Pro Shift Kit Microbearing Trans Detent Arm and Spring and oil pan gasket Kit Make shifting quicker and virtually eliminate missed shifts. This is exactly the same type of kit that Xxxxxxxxx Racing has used. Note: This kit will not fix a damaged transmission - If the bike is constantly kicking out of second gear, you really need to split the cases and replace 2nd gear, the gear it mates with and the second gear shift fork. (415) 883-5620
(sample pic, not actual item) SHFT-SUZ-3  $49.95 F-Pro shift spring, oil pan gasket 1. Choose your shipping method   16.00 Domestic USA Standard Ground 48.00 International USPS Express, tracked 48.50 Russia, USPS Priority, no tracking 4.00 each additional item in shipment 2.	Trans Shift Spring and oil pan gasket Kit Make shifting MUCH quicker and virtually eliminate missed shifts. This is exactly the same type of kit that Yamaha Racing has used. Note: This kit will not fix a damaged transmission - If the bike is constantly kicking out of second gear, you really need to split the cases and replace 2nd gear, the gear it mates with and the second gear shift fork.
COV-S06-RH-KT and Billet Engine Covers	Cover set for the gsxr750. Absolutely the strongest covers you can buy - and has the highest strength / weight ratio available! Individual replacement cover parts available direct from Factory.
Emulsion tubes / needle jets - replaces worn stock  tubes
F-Pro  nickel plated replacement emulsion tubes CRZ-EMU-100102k1221 x 4 pcs  $132 1. Choose your shipping method 14.00 Domestic USA Standard Ground 48.00 International USPS Express, tracked 44.50 Russia, USPS Priority, no tracking 8.00 each additional item in shipment 2.	High mileage? Poor fuel economy?     Rich running? Get your mileage back. New nickel plated emulsion tubes / needle jets Factory Pro nickel plated stock replacements in stock -- works with stock needles, Factory Pro and Dynojet 3mm series needles. 36mm CV  ~3.00mm  (.1175 kit) "Y-1 or Y-2"
TL-float height gauge $59.95 1. Choose your shipping method 14.00 Domestic USA Standard Ground 48.00 International USPS Express, tracked 44.50 Russia, USPS Priority, no tracking 8.00 each additional item in shipment 2.	The only way to accurately measure float heights. Works on nearly every carburetor.



Absolutely NO carb parts sold in California. New and improved Suzuki Teka SFI  2 with new TPS display and "MMT" Memory Module Tuner Finally - Quick, easy, cost effective Suzuki tuning with no expensive "add-on boxes" Suzuki cruisers and sportbikes Please click here for more info Contact Factory Pro M-F, 9am - 5pm, Pacific time, -7 or -8 GMT 800 869-0497  USA and Canada 415 883-5620 parts information  info@factorypro.com EC997 dynamometer information info@factorypro.com Product Support /Tech SECTION click here   Mailing / Shipping address: Factory Pro 101c Roblar Drive Novato, CA USA And most importantly Restart back at the HOME page and click on the red box in the top left to find the bike that you want parts for... restart at HOME page   This Tuning Site has been visited by    people. www.digits.net - the oldest counting service on the web
