990 Supermoto SM  T and R all years KTM Dakar
Factory Racing support
990 Super Enduro R all years

990 Adventure  all years

990 Super Duke / Super Duke R  all years




Shift Improvement



Pro Shift Kit

pn:
SHFT-PRO-KT99-CER

Hybrid Ceramic microbearing arm and F-Pro Shift Spring (does not include clutch cover gasket)

$139.95
1. Choose your shipping method
2.



Virtually eliminate missed shifts and false neutrals. Quicker shifts.

The 690 has lazy shift action. Not what you want when Super Motard racing or jumping those doubles or splitting that lane.

Factory Pro's opinion is that if you nudge the bike out of one gear, it ought to go into the next gear.

 The stock shifting, on the KTM 990, can be sketchy under even recreational use.
Some individual bikes, more than others, have a propensity for false neutrals and missed shifts in critical situations.

Changing the oil can make, maybe a 10% difference and perhaps moving the lever up or down can make a 10% difference - and this shift kit is a stunning 100% difference.
In other words, use any old oil and have your lever set almost anywhere realistic and it will still shift well.

Virtually eliminate missed shifts and false neutrals.
Installation: About 1-2 hours - no case splitting required. The clutch basket  has to be removed to install the arm and spring.

Available with Steel or
Hybrid Ceramic Microbearing

Close to San Francisco? We can install.

Call for service appointment.
415 472-4962

Call to buy and ship.
800 869-0497


Pro Shift Kit

pn:
SHFT-PRO-KT99-STEEL

STEEL microbearing arm and F-Pro Shift Spring
(does not include clutch cover gasket)

$109.95
1. Choose your shipping method
2.





F-Pro Shift Spring
pn: Z95-612-0990

$39.95

1. Choose your shipping method

2.



...................

 46mm / 3/4" / 6 point socket      $32.95
Note: it's 3/4" drive.
1. Choose your shipping method

2.



 32mm / 3/4" / deep / 6 point socket      $24.95
Note: it's 3/4" drive.

950 / 990 KTM clutch nut socket
1. Choose your shipping method

2.


A new bike "snicks" into each gear, sweetly.

The stock shift spring wears out and ends up delivering soft action, indistinct shifts and occasional unexpected false neutrals. The flaccid shifting 950/990 syndrome.

This F-Pro spring will:
Virtually eliminate missed shifts and false neutrals caused by quick, weak or sloppy shifting in the 950 and 990.

A customer told me that "Yeah, it doesn't shift nicely, I just boot it when it's important that  I don't miss a shift.".

Our opinion is that if you nudge the bike out of one gear, it ought to go into the next gear.

 The stock shifting, on some bikes, can be sketchy under even recreational use.
Some individual bikes, more than others, have a propensity for false neutrals and missed shifts in critical situations.

Changing the oil can make, maybe a 10% difference and perhaps moving the lever up or down can make a 10% difference - and this shift spring kit is something like an 95% difference.
In other words, use any old oil and have your lever set almost anywhere realistic and it will still shift well.

Factory Pro can massage your shift mechanism back into a "snick, snick, snick"  shifting transmission.

Virtually eliminate missed shifts and false neutrals.
Installation: About 1-2 hours - requires clutch basket removal and replacement.

Close to San Francisco? We can install.

Call for appointment.
415 472-4962

marc@factorypro.com




950 / 990 Installation Instructions

Time: 1-2 hours - need 32mm and 46mm socket and impact wrench



clutch cover gasket
pn: 60030025000
950 / 990 KTM - all years

$25

1. Choose your shipping method>

2.






Fuel injection tuning
















TuneECU screen



KTM 990 SM, 2013 dealer plug location



TuneECU and Tuneboy KTM Trackday Tuning Specialist

The 990'e are variable - an occasional few run fairly smoothly and some (most) surge a bit and many are super abrupt on the on / off / barely on throttle operation - kind of like what you don't want on a big, strong, torquey bike.

Many 990's are just not enjoyable to ride on a trail. The fuel injection tuning is one of the few faults of the bike.
It's what happens when, I assume, manufacturers sublet out FI tuning to non-motorcycle specialists for emissions and drivability tuning.
It's possible to make the KTMs run much smoother - better.

Proper tuning fuel, ignition, crossover tables, device activation tables will smooth out the lowend and improve power delivery linearity to make the bike sweet and nice to ride. (and 'oh darn", will make more peak hp, too  :-)

Wheelsmith / Factory uses the EC997 dyno - with Realtime HP and torque readout and a 5 gas Exhaust Analyzer - and that's why results are likely to be better than a dealership level dyno that only "tunes to an air-fuel ratio" (as if there is some magic afr).

I've heard reports in MotorcycleUSA.com that common dealership level dynos can take "120 dyno runs to tune" a KTM. That's abusive to your bike. It's fine for a magazine test bike, but not yours.

The Factory Pro EC997 and it's 5 gas exhaust gas analyzer derive loads more tuning information per dyno run - providing the most tuning information in less "engine runtime" -  6-10 runs would be max engine runtime.

Wheelsmith has been tuning KTM twins since the first 950's came out - in fact, the 950 jetting kit that Factory Pro / Wheelsmith developed is the best performing 950 jet kit available to this very day.

Wheelsmith (Factory Pro's R&D division) is available to tune your 990 - be it TuneECU, Tuneboy or a simple power commander.

Note: A power commander is limited in what it can adjust and can't tune for maximum smoothness as well as TuneECU or Tuneboy.

We suggest TuneECU at this time - it's reflashing the stock ECU with custom mapping and tuning -
TuneECU is more reliable than adding an aftermarket fuel controller.

Wheelsmith Tuning Direct:

415 883-5620
  m-f, 9-4 or maybe till 6

Movie and sound

.....................................

Feedback
TuneECU re-tuning and test riding

Oct, 2015

Hi Marc,
You dyno tuned my trackday 990 last year. You might recall that my wife and I went over to Point Reyes while you had the bike.

Just wanted to say thanks for a good job and I am a satisfied customer. The 990 is running smooth and crisp and the throttle is much more behaved.

When the opportunity arises I have posted the good results of a tune done by you in your shop. Hope you have had some business as the result.

sincerely,
Bob S.



    Dec 28, 2012
       Hello Marc!

Riding home last night thru traffic and lane splitting was successful.
Previously, that would have been a very scary proposition but the 990 is
pretty smooth in that environment now. Thanks.

Thanks again for your successful efforts.

      Steve Marker

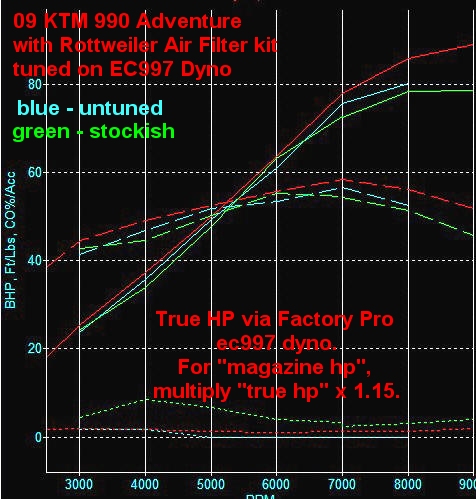

KTM 990 Adventure, 2009

AC, Shasta

Rottweiler Air Filter Kit

green - a stockish sample bike

blue - untuned w Rott kit

red - Rott kit re-tuned with EC997 dyno

lowend and part throttle on/off is night and day smoother
KTM 990 Adventure, 2007

Steve Marker, Oakland, CA

both runs are with Leo Vince slipons with db killers installed

blue - untuned

red - re-tuned with EC997 dyno

lowend and part throttle on/off is night and day smoother
Notes:
I once had a ktm 990 that was stubbornly overrich at about 1% throttle.
Not .5% and not 2% - just at 1%.
I tried the IAP table. I tried the TPS table. I tried changing the FL table without results.
After the customer checked and reset sensors, it was still bad at 1% throttle.
Turned out to be the crankcase vent check valve.

thanks to Chris Parks

TuneECU

Where is the  TuneECU connector located?
(aka: Where the heck is that darned connector?)
Remove Seat with key.
Seat lock is on the LH side, below seat.
There are 2 x 6mm headed bolts to remove.
A 6mm T handle will reach. (not an allen wrench - a hex wrench)
The two bolts are removed and the plastic cover is lifted up from the rear.
Here is the hidden TuneECU connector.
It's white.

If you were rummaging around on the bike, you might have found one other white connector near the steering head. That's not it.....
The cover has a "blank" plug
Turn the connector latch side up.
Unintuitively, you lift UP / OUT on the latch to unlock.
Blank plug.
Connect the TuneECU connector.
TuneECU cable connected to bike.
TuneECU cable connected to the computer's USB port.

The white connector is a dongle for a different chip burning software system.
Start TuneECU on computer.

Load a compatible map into TuneECU.

Start the bike.

If magic happens, the software will flash red, red, red, orange, orange, green, green, green, green in the bottom, right of the screen, read out the map ID number and the diagnostics will work.
