TPS Wire identification chart
Please add new info.
Thank you,
Marc

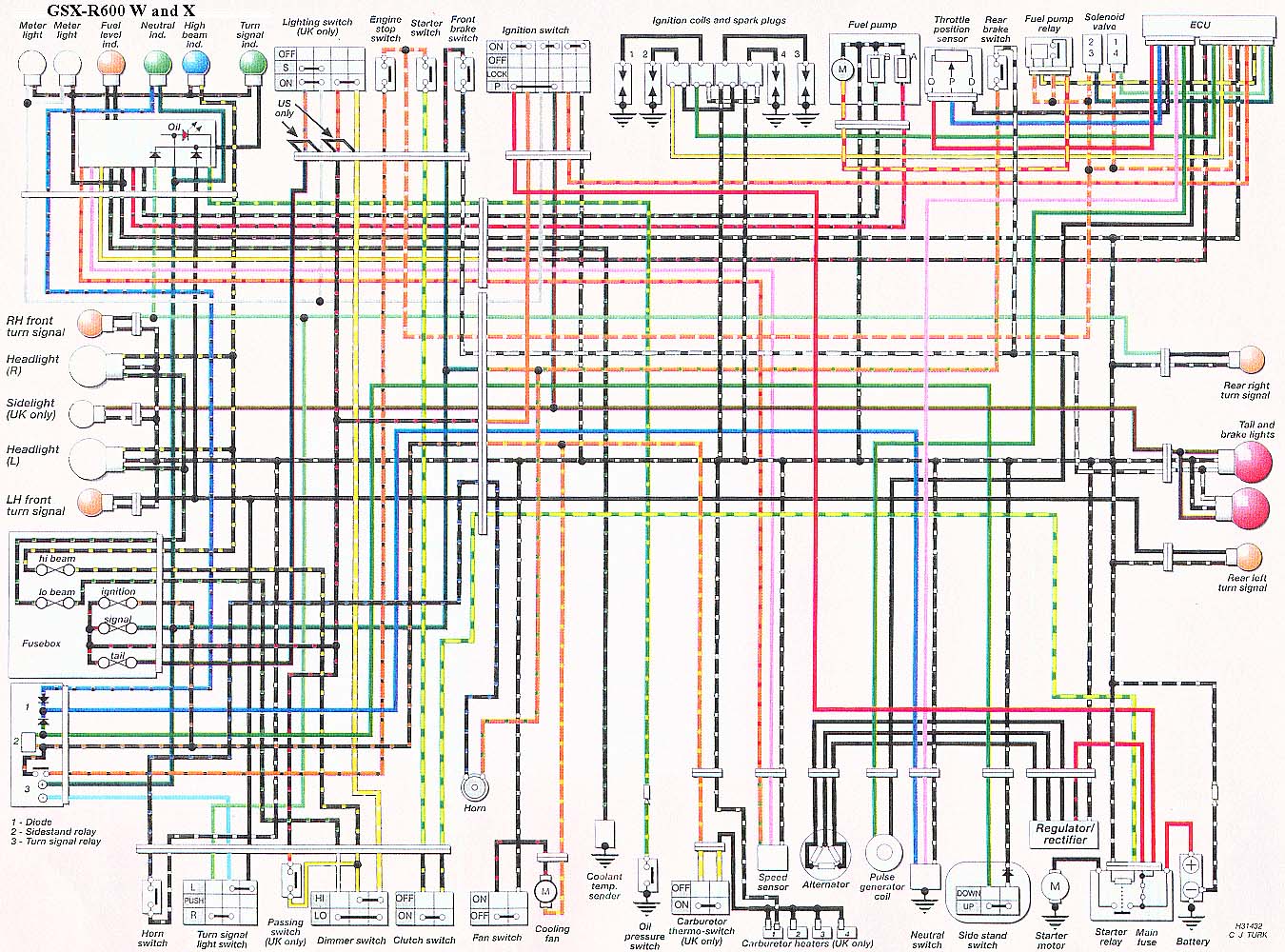

| Brand | displacement | model | year | TPS output wire Ground wire location |
submitted by | |
| Aprilia | submit new information | |||||
| Benelli | submit new information | |||||
| Ducati | submit new information | |||||
| Honda | submit new information | |||||
| Kawasaki | submit new information | |||||
| KTM | submit new information | |||||
| Suzuki | 600 | gsxr600W and Y |
92-93 | Red is power to TPS BLUE is wiper <<<<< connect here Black is ground <<<<< connect here or you can connect to battery or frame ground |
colors are at ECU wire_diagram |
|

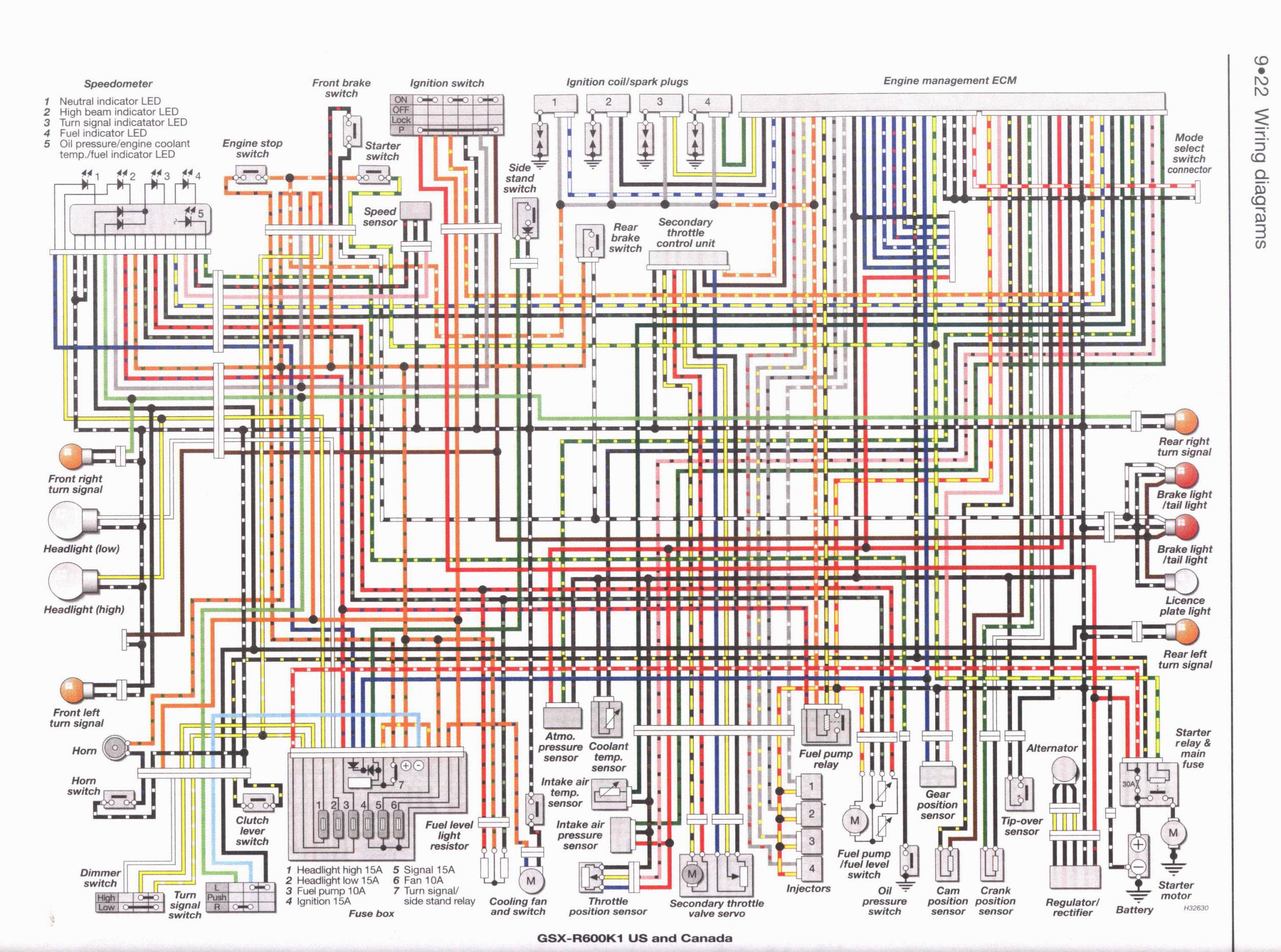

| 600 | gsxr600k1-K2 | Red is power to TPS Pink/ Black is wiper <<<<< connect here Black #k2 is ground <<<<< connect here or you can connect to battery or frame ground |
colors are at ECU wire_diagram |
|||
| 650 | dl650 | up to at least 07 | Red is power to TPS Pink/White #21 is wiper <<<<< connect here Black/Brown #12 is ground <<<<< connect here or you can connect to battery or frame ground |
colors are at ECU | Marc Jon, Scott 2010/05/25 |
|

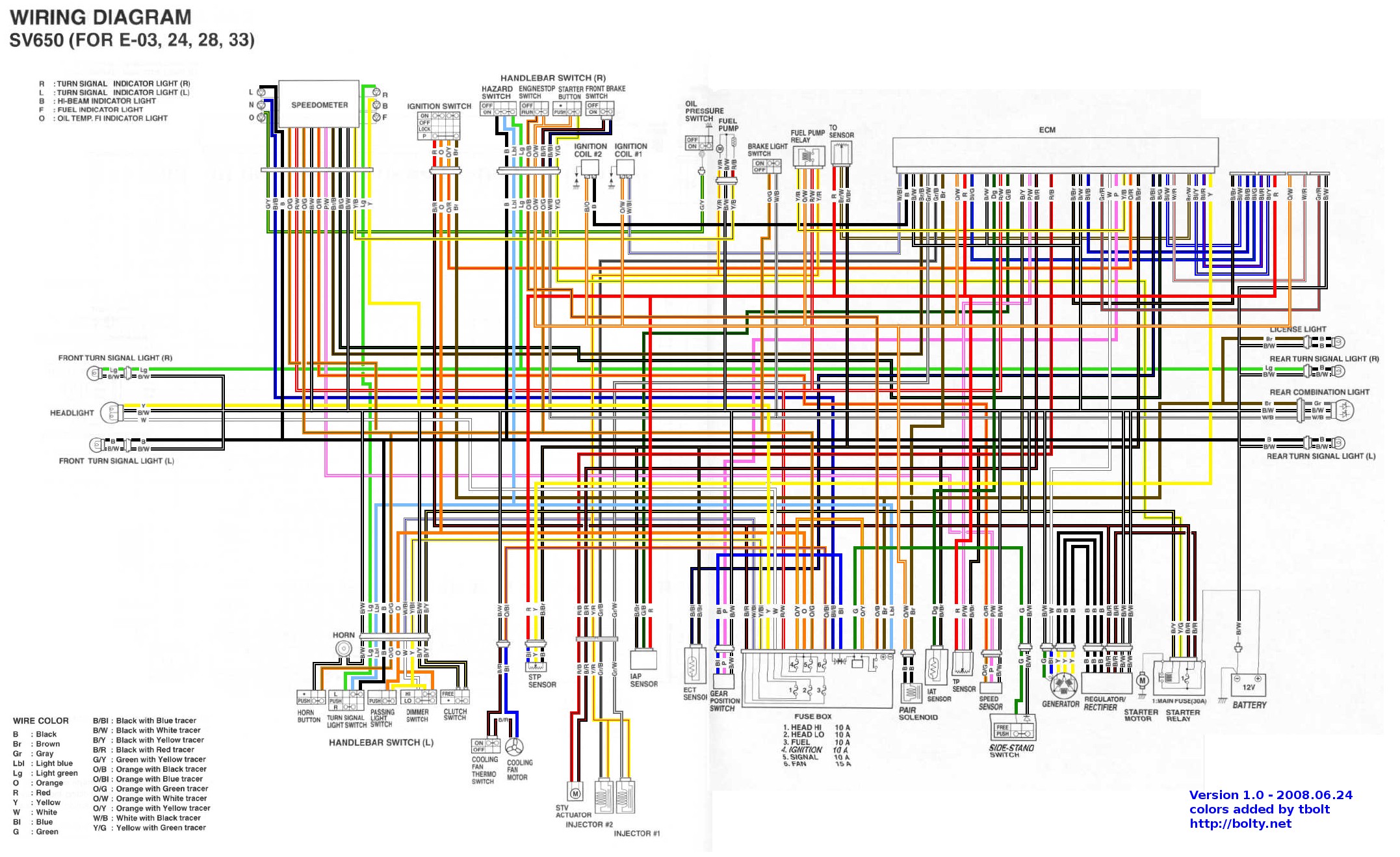

| 650 | sv650 | 03-10 | Red is power to TPS Pink/White #21 is wiper <<<<< connect here Black/Brown #12 is ground <<<<< connect here or you can connect to battery or frame ground |
colors are at ECU wire diagram |
Marc Jon, Scott 2010/05/25 |
|
| 750 | gsxr750 | 07-08 | pink/black wire black (ground) Under tank, near TPS harness, there is a length of unsleeved wire for easy wire access |
colors are at ECU | Raul / Otto Meono 2008/10/29 |
|
| 750 | gsxr750 | 96-97 | Red is power to TPS BLUE is wiper <<<<< connect here Black /Brown is ground <<<<< connect here or you can connect to battery or frame ground |
colors are at ECU wire diagram |
Raul / Otto Meono 2008/10/29 |
|
| 1000 | gsxr1000 | 07-08 | Red is power to TPS Pink/ Black is wiper <<<<< connect here Black/Brown is ground <<<<< connect here or you can connect to battery or frame ground |
colors are at ECU wire diagram |
Jon Hilton 2008/10/10 |
|
| 1000 | gsxr1000 | 03-04 | Red is power to TPS Pink/ Black is wiper <<<<< connect here Black/Brown #12 is ground <<<<< connect here or you can connect to battery or frame ground |
colors are at ECU wire diagram |
Jon Hilton 2008/10/10 |
|

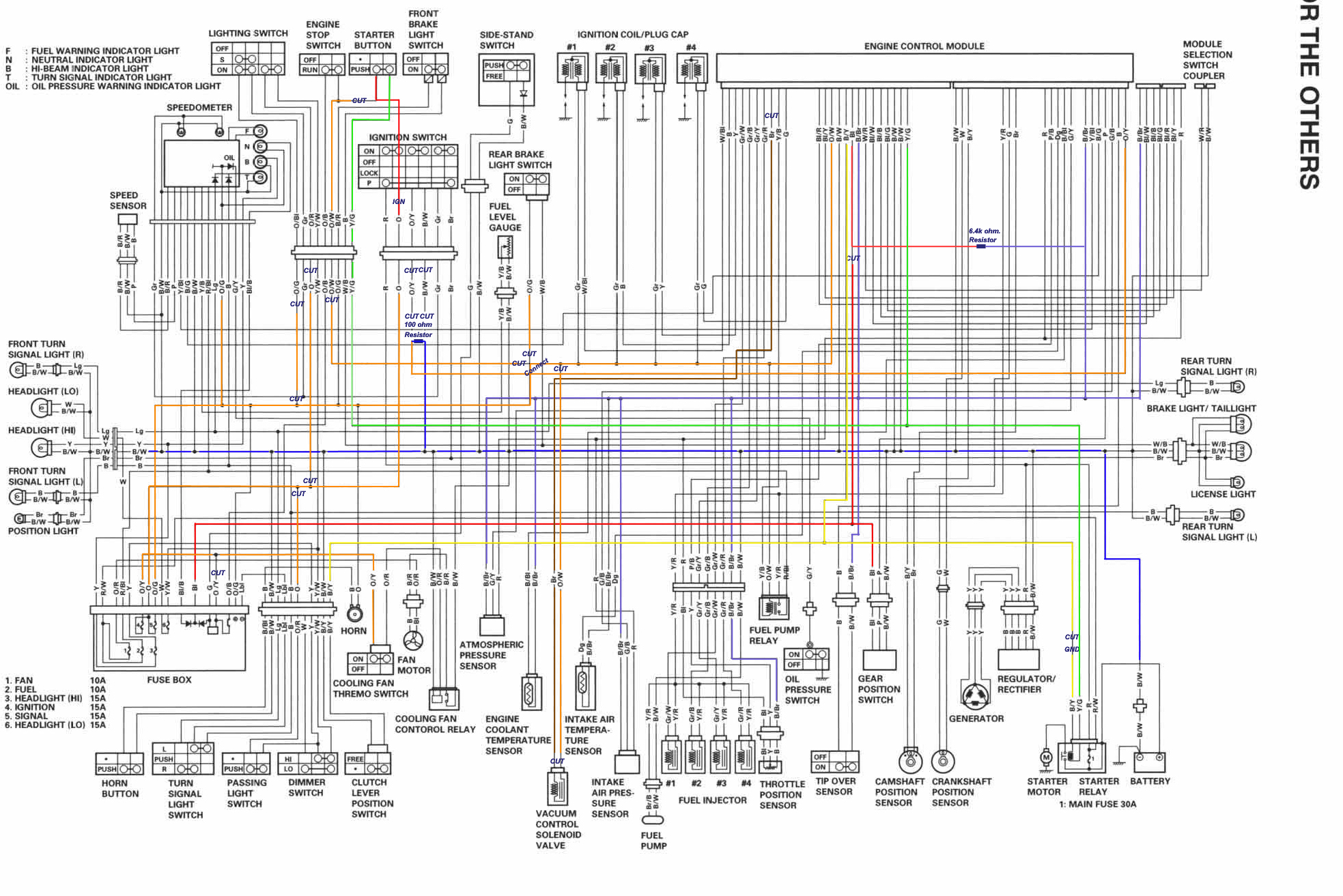

| 1300 | gsx1300r Hayabusa | 02-07 | Pink/ Black is wiper <<<<< connect here | colors are at ECU wire diagram |
||
| 1340 | gsx1300r Hayabusa | 08-10 | Pink/ Black is wiper <<<<< connect here | colors are at ECU wire diagram |
||
| 1500 | vl1500 | 08-10 | Pink/ Black is wiper <<<<< connect here | colors are at ECU wire diagram |
||
| Yamaha | submit new information | |||||
| 1000 | 07-08 | Manual Throttle: Black wire in harness at the ECU
in smaller, 26 pin connector (it's pin #11) Automatic Throttle: Black wire in harness at the ECU in smaller, 26 pin connector (it's pin # 12) Ground: Black/Blue wire on TPS harness (it's pin # 2 for both TPS sensors) or an alligator clip on battery negative. Suggestion: Attach SFI 2 to the "other" TPS that your PC or Teka 4 "isn't" using. |
Jon Hilton 2008/10/31 |
|||
| 600 | 07-08 | |||||
|
|
