Yamaha

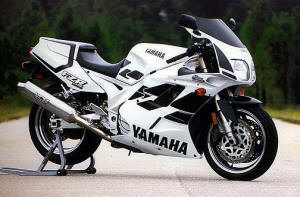

FZR1000, 89-96 |
|
|
Yamaha
FZR1000, 89-96 |
| Finger and screwdriver Adjustable "Long Boy" extended Yamaha fuel screws | |
Long Boy Fuel Screw Kit $89.95 2.  |
"Long Boy" Frustrated with trying to find an "almost 90 degree" screwdriver
to fine adjust your fuel screws for best idle and cruise? Make your life easier! Installation: Each screw assembly comes with:
|
| part number | description |
| Needle jet - 100120K (also called emulsion tube) See desc. needle jet desc
$132 set of 4 |
The famous plated "emulsion tubes"
(needle jets) Original replacement style The needle jet orifice can wear oblong
in as little as 10,000 miles on 38mm Mikuni's and is particularly aggravated
by "in town", low rpm operation. The result is excessive richness at
low rpm that can be partially compensated for by lowering the fuel level. |
 CRB-Y06-1.0 $139.95 |
Boosts power a bit at full throttle,
improves throttle response - especially at low rpm and part throttle,
smoothing power delivery. Engine runs a bit cooler and smoother. No
slide drilling required. |
 CRB-Y06-1.1-TI $169.95 |
Ti ProKit |
 CRB-Y06-3.0 $159.95 w/o filters |
Config 30 Carb Recal Kit |
 FI-BMC-#3092 air filter set for #3.0 kit $124.95 |
Cleanable,
Dual Style BMC filters feature more surface area than other filters
for less intake restriction and up to 2hp additional on the fzr1000
as compared to other cleanable, gauze type filters. If you have inspected a set of used, non-BMC clamp-on dual inlet air filters, you will likely notice that the inside rubber flange was pulled up and distorted when the clamps were tightened. The BMC filter is spaced more properly for the FZR as compared to other brands of individual air filters and doesn't distort air filter flanges, lessening the chance of allowing unfiltered air to enter the engine. FYI: BMC-3092 specs: 61mm carb bellmouth OD, 25mm between carbs, 85mm center to center dist. |
| .outer Bell diameter inside width, bell OD. to bell OD. outer Bell diameter stock CV Carb60mm25mm60mmBMC~61mm~25mm~61mmother gauze~61mm~23-24mm~61mm |
|
|
Float bowl gaskets |
|
 reference: 3gm-14997-00-00 $64for 4 |
|
 SHFT-PRO-YAM-4 (inc F-Pro Microbearing Detent Arm, F-Pro Shift Spring, clutch cover gasket) $139.95 Legacy Series (allow up to 2-3 weeks before shipping)
replaces arm 36Y-18140-00-00 and |
Pro Transmission Detent Arm Kit Includes Factory Pro Microbearing
Detent Arm, heavy duty detent spring and gasket. Makes shifting more
positive at the expense of slightly stiffer shift lever action. The
stronger detent spring rotates the shift drum quicker, so the gears
are more likely to engage under quick shift conditions. The Microbearing
removes friction for the quickest shifting short of an air shifter. |
|
|
The only way to accurately measure float heights in mm. Works on nearly every carburetor. Marc recommends. |
LINKS
EXUPBrotherHood
The source of all things EXUP
| Float Height Setting Trick for 38mm "Mik's" | |
| One of the problems with setting
the float height on the 38mm downdraft Mikuni's that come on Ducati's,
yzf 750's, tdm 850's and fzr1000's, is that the darn white plastic "float
cage" keeps popping out of the carb body unless you hold it in. When you hold it in with your fingers, you always flex the cage frame and distort the reading that you are setting the float height at..... Aaarrggghhh!! :-) After spending 45 minutes setting some yzf750 carbs in the sweltering Mid Ohio heat of summer, I decided to make a float cage holder and sell 'em! I'd make a million $$!! |
 |
| When I got back to work, I
set up and made a pile of cute little flat braces. As I was sitting there, admiring my cleverness...... one of my parts guys wandered by and asked what was I making? I showed him that you could just take my clever little piece of aluminum and hold those float cages right tightly up into their seated position - so you could get consistent float height readings. |
 |
| He says..... It looks like you could just put the float bowl on with the front holes on the bowl lined up with the rear holes on the carb body and slap some screws in and it would do the same thing........... |
 |
| I bought him lunch with the
million $$ I didn't make....
Marc |
 |
|
Hello. Here’s the pics you asked for! Thanks for the help, the bike runs BEAUTIFULLY now, lots more power! The front end now comes up on the throttle – whereas it didn’t before! There’s another pic in there too where I used a bar code to measure the bowls. I found this a lot easier than using a ruler. I measured the bar next to the number “8†on my barcode to be the recommended height on my bike – 14mm. -Mike Beary
Thanks Mike, for the pics! |
|
|
||||||||||
