Suzuki
dr750 88-89
dr800 90-97

Long Boy extended Fuel Screws- finger adjustable





Dual
Long Boy Fuel Screw  kit

pn: CRZ-SCR-5020m
(replaces Suzuki 13279-47070)

$49.95
for 2 screws, 2 springs and 2 orings

1. Choose your shipping method

2.







Jesse Tennant's DR650


Jody Cox
  Conway, SC June 2013

"Long Boy"

Finger and screwdriver adjustable extended Fuel Screw Kit

Now with
Straight knurling for better grip
Screwdriver slot to use "if you want to"
Indexing flat to keep track of turns
Smaller head and "Traction groove" for lighter weight and better grip

Frustrated with trying to find an "almost 90 degree"  screwdriver to fine adjust your fuel screw for best idle and cruise?
Use Factory Pro's "finger adjustable" fuel screw to adjust fuel screw for best throttle response. Traveling to high altitude? It's easy to lean out the lowend temporarily.

Make your life easier.

Installation:

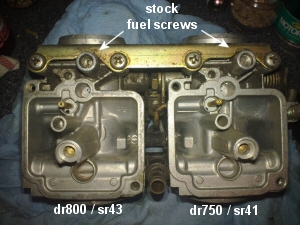

Remove old short stock fuel screw, old o-ring, old washer and old spring. The o-ring might be stuck in the carb, so, take a light and make sure it's really out if it didn't come out with the screw (or you can't find it after you took out the screw)
Use a small bent wire to pull it out if it doesn't drop out. Keep the old parts for "spares".

F-Pro Fuel Screw assembly comes with:
2 Long Boy extended fuel screws
 2 new o-rings
2 new washers
2 new springs

        The cat's meow!  Thanks MARC. Great addition.      dr 650 Jody Cox, Conway, SC

         sweet deal fits perfectly no issues, thanks again.      dr650  Jeffrey Labonte

      Great product, best price around for these and fast shipping! Thanks      d650 Blargins45

      Awesome!     dr650 Tennantw

      It runs great , very responsive.     jet kit and Long Boy fuel screw          Mike  Malsom   Florida


Jesse Tennant's DR650
Long Boy Extended Fuel Screw


Tools : diagnostic and setting

TL-float height gauge

$59.95

1. Choose your shipping method

2.

The only way to accurately measure float heights. Works on nearly every carburetor.

By adjusting the float height, you can change the fuel level and that's how you tune the lowend / cruise and full throttle / lowend throttle  -

This is what I use.
Marc
