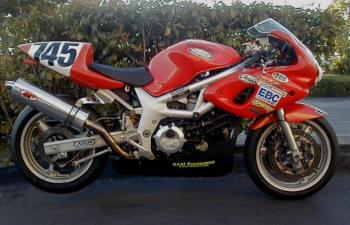

Jeff Tigert's AFM SV650 from some years ago





SV650  99-02

All power products developed and tested on the EC997 Eddy Current Dynamometer using the
True Rear Wheel HP Scale
(That's the only dyno that can honestly see TRUE air fuel ratios and 4 Gas information and graph them properly - others can provide patently wrong tuning information.)

Finger Adjustable "Long Boy" extended fuel screws

Long Boy Fuel Screw Kit
pn: CRZ-SCR-4030-M
replaces 13279-19F10

 $44.95
 with 2 new screws, springs, washers and o-rings

1. Choose your shipping method

2.

"Long Boy"
SV650 finger adjustable extended Fuel Screw assembly

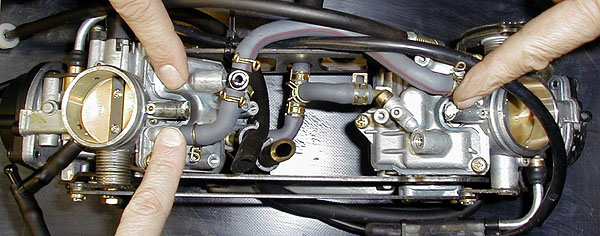

Frustrated with trying to find an "almost 90 degree"  screwdriver to fine adjust your fuel screws for best idle and cruise?
Use Factory Pro's new "finger adjustable" fuel screws to adjust fuel screws for best throttle response. Traveling to high altitude? It's easy to lean out the lowend temporarily.

Make your life easier!

Installation:
Remove old short stock fuel screws, old orings, old washers and old spring. The o-ring might be stuck in the carb, so, take a light and make sure it's really out if it didn't come out with the screw (or you can't find it after you took out the screw)
Use a small bent wire to pull it out if it doesn't drop out. Keep the old parts for "spares".

Note!
For early, large knob model fuel screws.
The SV650 float bowl can be "core shifted" over towards the fuel screw. If that happened, you have to file a small relief for the screw knob. Most of the time it's not an issue.

 Each screw assembly comes with:
2 Long Boy fuel screws  CRZ-SCR-4030m
 2 new o-rings
2 new washers
2 new springs



EVO Detent Star Kit




SHFT-EVO-S36-KT
  $239.95
includes: S36 EVO Shift star, Microbearing detent arm and F-Pro shift spring.

1. Choose your shipping method

2.



It's everything that I ever wanted to do to a shift mechanism -
Slightly stronger custom designed F-Pro detent spring - a new MicroBearing F-Pro detent arm and the final piece... A completely redesigned, empirically refined, multi angled, variable radii, repeaked and valleyed:

EVO-7 Shift STAR

This part will totally change the feel of the bike as a whole. The shifting effort is about the same - but the speed at which the gears actually engage is dramatically improved - Quicker, easier, shifting - A "twitch" on the lever and the throttle and you are in the next gear! Perfect for track use and road riding for effortless downshifts into a corner and just a "tap" to upshift without any more than a "twitch" off the throttle - That's not even mentioning that missed shifts virtually disappear!
In town? Low rpm cruise in second - shift to third? So quick and smooth that it will surprise and amaze - NO more clunky, lazy shifting in town - As I said - it's totally different and improved -
Proven concept - Virtually all the Factory Pro Support riders in the AMA and WERA multi- Champions Vesrah Racing tested and proved the EVO-7 Stars in 2003.
Stock shift performance that everybody used to take as a "given" will be regarded as "slow and lazy" after riding a bike with this kit -
Kit includes a new detent arm with a low friction microbearing roller, a performance shift spring and the NEW Factory Pro EVO Detent Star.
Make shifting MUCH quicker and virtually eliminate missed shifts.
Marc

Includes: Factory Pro Shift STAR, Factory Pro Microbearing Detent Arm, Factory Pro Detent Spring and a clutch cover gasket.
(everything that's in the Pro Kit below + the Factory Pro Shift STAR)

WAY better than a gen 2 stock star!

.........................................

Hi Marc,
I hope you are doing well. I am curious if you would be able to help me out on a couple of products, for an SV650. I am looking for the EVO Shift kit, part # SHFT-EVO-S36-KT, and the 90149-08094-00 Adjustable Center Shift Stud. It is for a race bike, and I will be happy to run your stickers and tell everyone how cool you guys are. And how cool the kit is, I have one on my old '01 ZX6R race bike and it was one of the best things I did to that bike.

Thanks a lot for your time.
Chris Van Andel
Race Support Motion Pro, Inc.
www.motionpro.com
867 American St
San Carlos, CA 94070
Phone: 650-594-9600 x132
Fax: 650-594-9610

....................................

 Sent: 10/12/2006 10:31:51 PM
From: GraVitY 0
Subject: Re: Short Shift kit * Start for '06 GSX-R 750....

*smile* Thanks, reason I asked is that I own a shift star and the arm with BB for my SV and I love it. But at the time I ordered it you needed to make more. :D
 I'll be most likely calling you in the near future.
Michael

SHIFT TECH click here

Transmission Shift Improvement Kit

SHFT-PRO-SUZ-36
$139.95

The microbearing arm and f-pro spring kit and clutch cover gasket.

1. Choose your shipping method

2.

Pro Transmission Detent Arm Kit

The original shift improvement kit -

Ever miss a shift??
Includes Factory Pro Microbearing Detent Arm, heavy duty detent spring and gasket. Makes shifting more positive at the expense of slightly stiffer shift lever action. The stronger detent spring rotates the shift drum quicker, so the gears are more likely to engage under quick shift conditions. The Microbearing removes friction for the quickest possible shifting with the least amount of effort.

Includes: Factory Pro Microbearing Detent Arm, Factory Pro Detent Spring and a clutch cover gasket.
(everything but the Shift STAR from the EVO kit)

SHIFT TECH click here


Ignition Advance Kit!!! -  New!!!

RTR-SUZ-36-04   $99.95

1. Choose your shipping method

2.

Ignition Advance Kit
The most ignored power improvement on the internet.

Use this kit to advance the ignition timing 4 degrees for more power at part throttle and at full throttle.
Install the key with offset to the LEFT to advance the timing!
For easiest, quickest install - we suggest that you have access to an air or electric impact wrench - That makes it simple to remove the rotor bolt --
Kit includes special key AND Factory Pro's own heat treated, tool steel, plated rotor puller.


Tools required:
1/2" air or electric impact wrench and socket set
Time:
Under 1 hour

Ignition Advance KEY, Installation SV650, SV1000 DL650 DL1000 Hayabusa installation and pictures



November, 2006

Hi-
I notice you have an advancer for the '03-'06 SV650. Will it fit the Suzuki DL650 VStrom? From what I understand the engine is very similar. I put one of your advancers on an '01 SV650 and loved the results. If the advancer works on the VStrom, can I expect similar results?
Thanks, Kurt Larson

YES, the kit works on the DL650 - Marc

Hybrid Ceramic Wheel Bearings



$99.95

2 bearing kit

for 99-08 sv650

front wheel only

pn: BE-HYCER-S59-FR

1. Choose your shipping method


2.





Hybrid Ceramic Wheel  Bearings

2 front wheel bearings


Tough 52100 steel races, rubber seals and lightweight, almost  friction free, silicon nitride ceramic balls.

Bearings are pregreased and ready to use.
Bearings have rubber seals that are easy to remove if desired.


marc@factorypro.com
Cover, Engine, Clutch Cover


(click pic to view hi res pic)

 COV-S36-RH w flat slider

$229.95

Special $50 w flat slider

1. Choose your shipping method

2.





Billet Clutch Cover

Cast vs. Billet Engine Covers
Billet material is "fine grained", meaning that the crystalline structure is composed of smaller,  tightly packed material. A Billet Engine Cover will endure more impact abuse without cracking.
Cast aluminum covers, in comparison, are comprised of relatively coarse grain material that is strong - right up to the point that it cracks and explodes under sharp impacts.
Abrasion resistance? No reason why either cast or billet would be better or worse - but with Factory Pro's Integrated Frame Bumper (pat. pend.) , the life of our engine covers (and your engine AND the track surface) is far superior to ANY other engine cover available.

The strongest and most protective cover you can buy. Slide on the Slider - not your billet cover! Keep your bike higher off the ground in a "lowside".  Saves water pump exterior (usually!)
Same concept as the YZF600 R6, R1 and CBR600 F4 covers (that we made at the request of the race department) that have been sweeping the AMA and amateur race circuits this year!

$229.95

Dear Marc,

Just thought I'd write to tell you I "used" the SV clutch cover I bought from you.
Lowside at about 80 mph into the runoff at a trackday. Your product took some abuse but held up beautifully.

Kept me going throughout the weekend. Good stuff, thanks!

Thanks, Alan Paryzek
June 26, 2004



Brent Porter! STAR!
momentumphoto.net

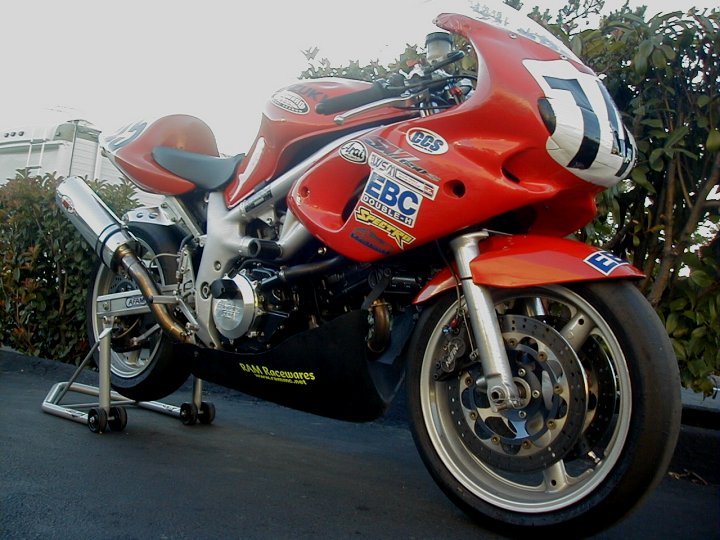

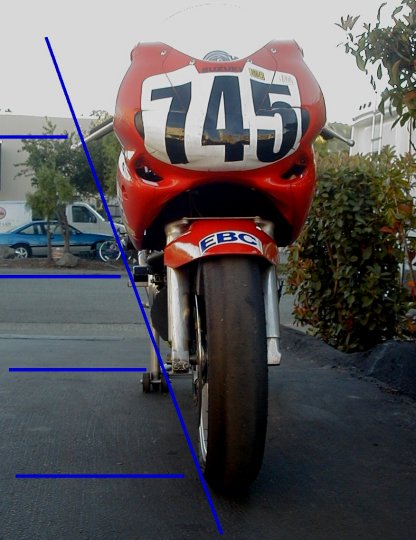

     cov_SV650_clutch_45side.JPG (375708 bytes)     cov_SV650_clutch_front_w_lines.JPG (220080 bytes)

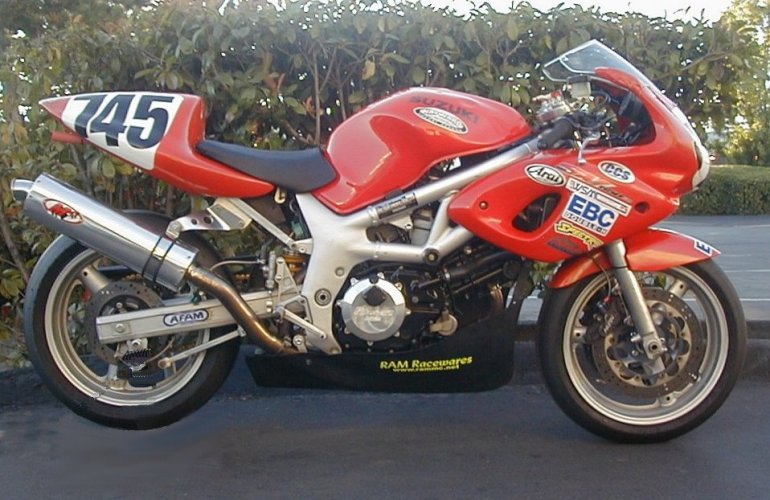

Jeff Tigert's race winning SV650

Carb Recal Kits



CRB-S36-3.7-RK3

Config 30 RaceKit

REMOVE THE  AIRBOX

$279.95
(includes foam filters, Carb RaceKit and Tank Risers)

 Add 3-4 hp over stock air filter over a rejetted bike with a stock air filter.

1. Choose your shipping method

2.


Our best selling SV kit!

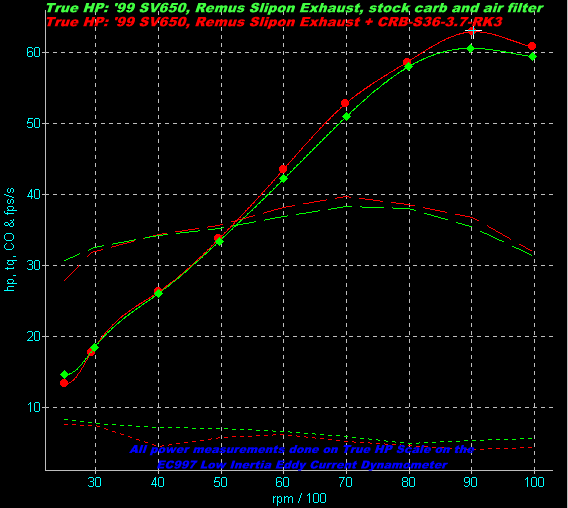

click to view True HP power improvements



  For applications where you wish to  REMOVE the airbox

"RaceKit" Config 30 Carb Kit

Add 3-4 True Rear Wheel HP over properly jetted stock.

Leave it to Factory Pro to design a special kit that adds as much power as high compression pistons and cams, without decreasing low-end and midrange.

If you are trying to tune on a dj dyno, we have reports that the topend power does not show up under inertia loading.
To tune best, it is suggested to either ride the bike and choose the main jet that makes the best power at high rpm or use an EC997 or other dyno that provides realtime HP figures under load.  The dj dynos don't duplicate the load conditions that are produced under real world operating conditions, producing power numbers that can be ambiguous.

Easy to tune - requires minor carb body machining - suggest professional installer.

This kit will allow tuning for each individual bike and bolt on exhaust system.
This is the kit of choice for on and off track, if you can remove your stock airbox.

Pulls stronger at part throttle and especially at full throttle ~2-3 more True Rear Wheel HP over the above CRB-S36-2.1-APK and 3-4 or more over a stock jetted bike.

Includes:   Air Filter Set:  2 foam washable air filters, Factory Pro Tank Risers and RK3 RaceKit tm Factory Pro Carb Recal Kit.

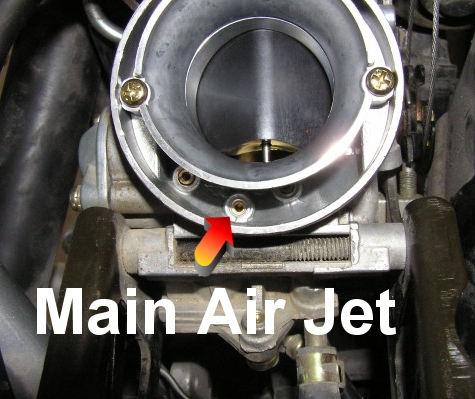

Tech: Main Air Jet location


CRB-S36-2.0
A
irbox Plus Configuration carb kit for:

for user modified "OPEN TOP"
K&N race filter with stock airbox

$189.95

includes: carb kit and alloy tank risers

1. Choose your shipping method

2.


This is the original APK "AirBox Plus Kit"  for the SV650

It's a special Factory Pro designed kit for a modified air filter and will make 2-3 True HP over a stock jetted bike - IF properly tuned.
 (not tuned on a dealership level dyno inertia hp to an "AF ratio")

 This carb kit is not just a regular carb kit with a different main jet. This kit also includes the elegant Factory Pro Tank Riser kit.

This kit does require air filter modifications.  CHECK WITH YOUR RACING ORGANIZATION FOR LEGALITY!
This kit will allow tuning for each individual bike and bolt on exhaust system - or the stock exhaust system.br> This is the kit of choice for on and off track when you want to retain the stock airbox - pulling stronger at part throttle and especially at full throttle.
Includes:
FFactory Pro designed Tank Risers and matching Factory Pro 2.0 Carb Recal Kit
.


Update:/font>

There's some additional carb mods that could be done to make it a bit better when individually tuned on a good dyno and I always said that I'd make a more expensive 2.0 kit if ANY tuner ever noticed it. It was my "state of mc tuning" test. Kind of like the black obelisk in the movie 2001.

Well, nobody with a dj dyno ever noticed.......  (So much for "tuning to an af ratio.....) The guys with EC997 dynos simply "did" the proper mods and went on to the next job.
November, 2006



CRB-S36-1.1-ti   $99.95
The
"Ti ProKit" jet  kit

for the stock airbox

1. Choose your shipping method

2.


Ti drop-in carb recal kit

Use with stock or aftermarket exhaust

Adds more low-end / midrange, if the proper main jet is selected, more top-end power. Easy to install and tune - no slide drilling.
This kit will allow tuning for each individual bike and bolt on exhaust system.
This is the kit of choice for on and off track - pulling stronger at part throttle and at full throttle.
Works with stock or BMC "Street" air filters.

Note: On the SV, no carb kit will "MAKE" horsepower. A  Carburetor Recalibration Kit tm will allow you to install the combination of jets that will allow your bike / exhaust / intake system, together, to make as much power as the engine / exhaust / intake system CAN possibly make.


CRB-S36-1.0

$89.95

1. Choose your shipping method

2.


STD drop-in carb recal kit

Tools

TL-float height gauge

$59.95

1. Choose your shipping method

2.




The only way to accurately measure float heights. Works on nearly every carburetor.
Marked in mm.


Needle Jet Rebuild

$280.00
allow 3-4 days in-house.

Call 415 883-5620
to arrange - or email

Yep!
It's true - the needle jets on the SV carbs wear out - just like the VL1500's and the cbr600's and 900's...... Happens with stock needles, stainless and titanium needles.....
We can rebuild them for $280 + shipping.

So - If your SV has started racking up the miles and seems to be getting rich and sloppy at low rpm (especially), and you can't fix by lowering the fuel level anymore - it's time to rebuild them -




So, one week, we were messin' around (I mean carefully testing components.....) and decided to work a bit on the venerable SV650.


So - we dynoed it, all stock exhaust, cams and carburetion and got about:

60 True HP
 (maybe 69 dynojet hp)
Then we added a couple SV intake cams for the exhaust and our APK SV Carb kit with tank risers, with "not spectacular" improvements. like 61 - 62 True HP
(adding intake cam to exh side + jettting)
Next, we installed a set of Megacycle cams that we were evaluating, still with stock exhaust and with the same APK carb kit.
Ok - That's pretty good. power. Added about 5 with the Megacycle cams.
65 True HP
(adding 4 Megacycle cams)
 (maybe 75 dynojet hp)

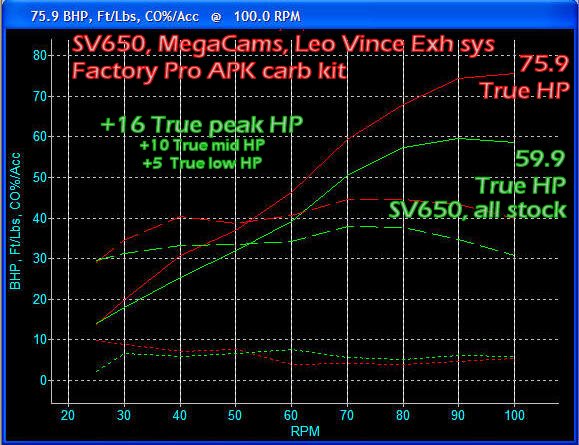

Finally, we added a Leo Vinci exhaust system.

Exhausts on the SV don't normally add 10 HP - but the combination of a well designed exhaust cam + a well designed race exhaust will deliver better total power than either of the single items would, used individually.

75.9 True HP

 (maybe 87 dynojet hp)

25% HP
 Improvement
with BETTER low, mid and topend  than the stock bike!

I've dynoed many "race" SV's and very few match the power that this one put out - and this isn't even a full racebike - it's a trackday bike......

When you use a properly designed dynamometer, like the EC997 (not a dealership level dynojet with mythical hp numbers) you can isolate and manipulate many small engine details that will ultimately produce far superior results - like this.
Maybe we should try some of the 600's next?

Parts and labor:
4 properly designed cams: $600/set of 4
1 exhaust system (price not included)
1 Factory Pro APK Carb Kit: $250
Factory Pro Carb Tuning (properly tuned)
Factory Pro Cam Install and valve adjust and the
Factory Pro Tuning on EC997 Hi Speed Dyne System

Under $2200 parts and labor?
(plus the Leo Vince exhaust system)
 for AFM race level competitive power and a helluva trackday bike.

Sure beats "high comp" "flat top pistons" and the wrong cams and complete topend disassembly for twice the money and less power......

415 883-5620

So..... what would it be like if we did porting, a bit of cylinder and head milling, cam degree dyno tuning, Factory Pro billet velocity stacks, airbox mods? Maybe 80+ True hp (90 to 94 dynojet dyno hp) with still a stock bore and CV carbs??





V

NOTE! Shifting Tech!

Shifting issues with SV650's can be seemingly random.

 It is the centering on the shift shaft that aggravates either upshifting or downshifting,

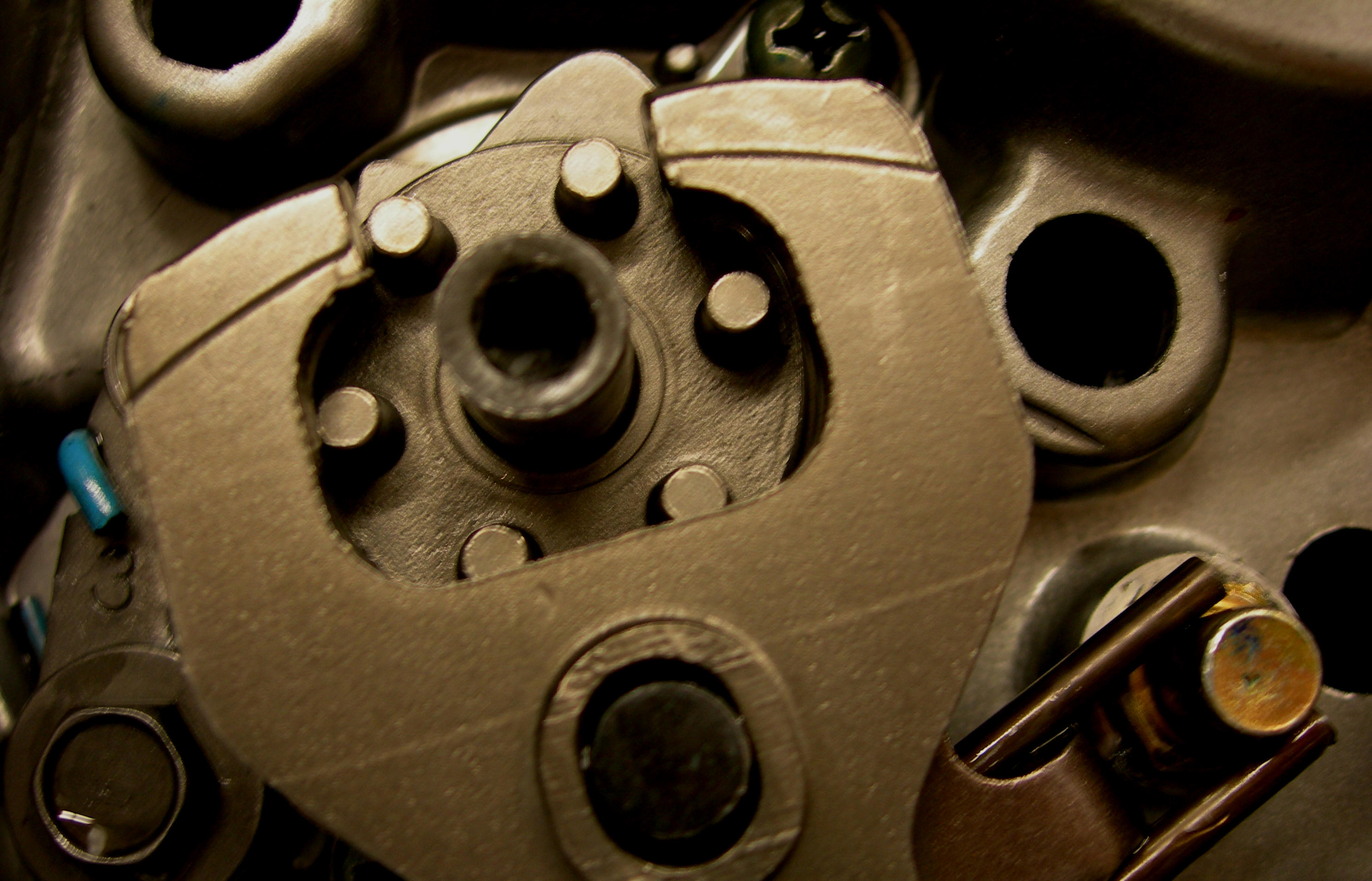

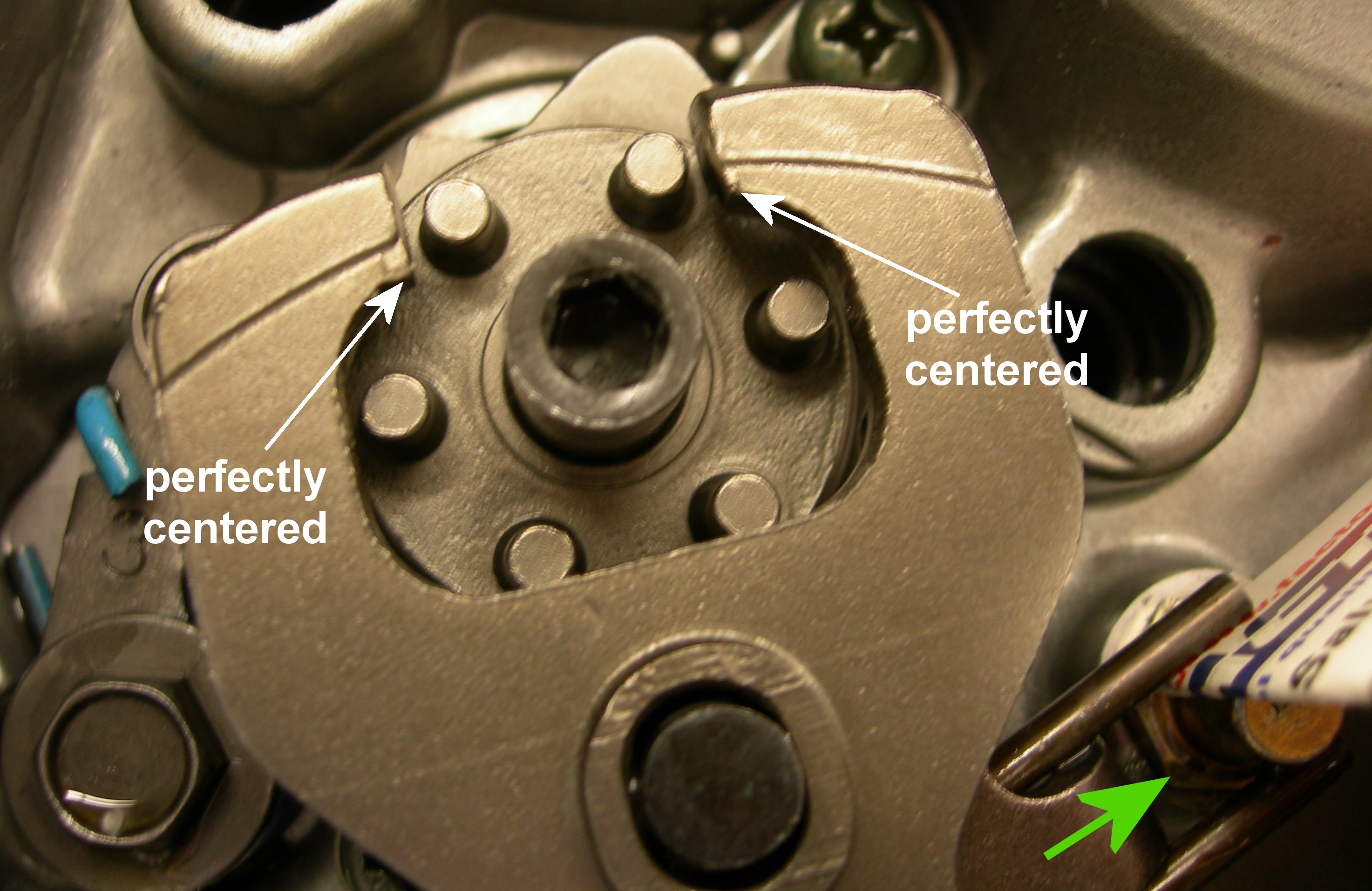

<    This is good.

The pins are centered between fingers when the shift shaft is at rest.





<   This is not so good.

The pins are not centered between fingers when the shift shaft is at rest.

If they don't drop down fully, beyond the "pins", that prevents the "fingers" from dropping down and getting ready for the next shift.

If you've got issues - check!

Adjustable Center Shift Stud

SV650, SV1000, DL1000, TL1000
(and possibly others)
$24.95

1. Choose your shipping method

2.

If the shift shaft fingers aren't centered on the shift shaft, Factory Pro has the fix.

It's a special offset "centering" stud, adjustable by almost 1mm. The difference in the above example was only .31mm/.024".
More experienced mechanics will recall when almost all transmissions were equipped with parts like these. That allowed the engine builder to set the shift shaft to exactly in the center for the best possible shift performance.

Install the stud with enough threads exposed for the locknut.
Turn stud till shift shaft "fingers" are centered on detent STAR pins.
Tighten down the locknut.
Recheck indexing.

This fits all the SV650's, (and probably the 1000's)

$19.95  90149-08094-00

This Carb Recal Kit developed on the same EC997a Eddy Current dyno that developed the K59-1.7-RK ZX-6R RaceKit (Muzzy and Kinko's choice), the Y73-1.7-RK YZF750 (Vance and Hines choice), S37-1.7-RK GSX-R750, Suzuki of France and most of America's privateer racers choice)...


Congratulations!
Mike Solis - Race winner - SV650!

Race winning engine:
 2 stock, unmodified, std. bore SV650 pistons
2 stock, unmodified, intake and 2 stock, unmodified, exhaust cams - the original Gen 1 cams.
stock sized valves
Factory Pro ported heads
milled and decked, S36-3.7-RK Carb Recal Kit.

Race winning tuning:
 Tuned on the EC997 Low Inertia Eddy Current Dyno with 4-GAS - THAT's the power difference.
Race winning cost:
Porting, milling and carb kit and a set of filters.
Less than $2,000.

Looking for your idle FUEL mixture screws?
3 fingered Tony points - Here is where they are located.


3 fingered Tony.

Main Air Jet location

Thanks to JJ in Omaha, NE!









General Technical Support



Links

www.svrider.com



Errata

  • Carb Slides, SV650

    • The slides in the SV 650 are identical to GSX-R750 96-97. So. if you break the needle retainer tabs, you can use a GSX-R750 slide - which will be easier to find used. (entered Sept 18, 2001)





/div>


Absolutely NO carb parts sold in California.

New and improved Suzuki Teka SFI  2

with new TPS display and "MMT" Memory Module Tuner

Finally - Quick, easy, cost effective Suzuki tuning with no expensive "add-on boxes"
Suzuki cruisers and sportbikes

Please click here for more info

Contact Factory Pro
M-F, 9am - 5pm, Pacific time, -7 or -8 GMT

800 869-0497
 USA and Canada

415 883-5620

parts information
 info@factorypro.com

EC997 dynamometer information
info@factorypro.com

Product Support /Tech SECTION
click here



Mailing / Shipping address:

Factory Pro
101c Roblar Drive
Novato, CA
USA

And most importantly
Restart back at the HOME page and click on the red box in the top left to find the bike that you want parts for...
restart at HOME page



This Tuning Site has been visited by

people.
www.digits.net - the oldest counting service on the web









LINKS
EFI and Carb Tuning - Most all FI and carb tuning

by Wheelsmith Racing

Flight Training - train with AMA race winner Todd Harrington.

The Harringtons own American Flyers, one of the most established flight training facilities in the USA.

 8 locations

 800-362-0808
The Rich Oliver Mystery School will help you discover your hidden inner strength.
It will challenge you. It will teach you a new way of thinking, and a new way of riding. You can take your riding to an exciting new level!

We use a variety of proven drills and training techniques.
Practicing these techniques with our Yamaha dirt track trainers will enhance your abilities both on the track or the street.

It doesn't matter what you ride or race, the Rich Oliver Mystery School improves everyone's skill level and mindset!

WW2 vintage flying Special

Book a sightseeing flight over the Wine Country or a Kamikaze aerobatic flight or a biplane flight over famous Sonoma Raceway, the Golden Gate Bridge and the San Francisco Bay for one or two during the spring and get a free souvenir t shirt!
(NEW!  Ask about the P-40 flights!)

707 938 2444

Just tell them that you saw this on the Factory Pro website!
Marc
Northern California's most unforgettable flying experience.  No experience required.  Open weekends!

The extension of the laboratory for engines of the Swiss Federal Institute of Technology was completed in about 1935. Its architect was Rudolf Otto Salvisberg (1882-1940). He had a successful career in Berlin but returned to Switzerland after the advent of the Nazis. His architectural style was somewhat similar to that of Erich Mendelsohn. The staircase of the laboratory is in normal use but well preserved.
Edited to the tunes of Chemical Residue by Herbie Hancock.
