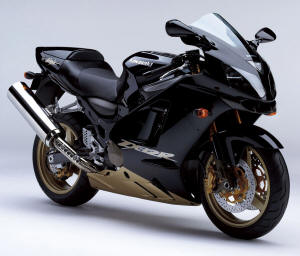

Kawasaki ZX-12R, 00-06 Factory Pro Series K97 The fastest Kawasaki to ever roll off the production line up till then!

Ignition Components  00-03
RTR-KAW-97-02 (fits 00-03 only) Ignition Advance Kit $99.95 USD replaces: 21007-1378 1. Choose your shipping method 14.00 Domestic USA Standard Ground 48.00 International USPS Express, tracked 44.50 Russia, USPS Priority, no tracking 8.00 each additional item in shipment 2.	This suggested standard advance rotor advances the timing 2 degrees. With stock engines with stock compression ratios, there is more power everywhere. Part throttle power is improved - helping corner exit speeds. Improved in-town driveability. Works with or without injection remapping - Works with stock and aftermarket exhaust.
RTR-KAW-97-06 (fits 00-03 only) Ignition Advance Kit $99.95 USD replaces: 21007-1378 1. Choose your shipping method 14.00 Domestic USA Standard Ground 48.00 International USPS Express, tracked 44.50 Russia, USPS Priority, no tracking 8.00 each additional item in shipment 2.	This +6 advance rotor advances the timing 6 degrees. More lowend and mid than stock or +2 adv but no improvement high rpm. REQUIRES FUEL TUNING. With stock engines with stock compression ratios, there is more power everywhere in low and mid.. Part throttle power is improved - helping corner exit speeds. Improved in-town driveability.   Works with stock and aftermarket exhaust. Fuel retuning required with +6 advancer.
Ignition Components    04-05 usa
ECU reflashing 04-05  usa	Get the ignition  curve you actually want   $200    marc@factorypro.com  415 883-5620
RTR-KAW-85-02 (fits 04 - 05 usa) +2 advancer $109.95 USD replaces: 21007-1410 1. Choose your shipping method 14.00 Domestic USA Standard Ground 48.00 International USPS Express, tracked 44.50 Russia, USPS Priority, no tracking 8.00 each additional item in shipment 2.	This advance rotor advances the timing 2 degrees. With stock engines with stock compression ratios, there is more power in the low and mid. Part throttle power is improved - helping corner exit speeds. Improved in-town driveability. +2 works with or without injection remapping - Works with stock and aftermarket exhaust.
RTR-KAW-85-06 (fits 04 - 05 usa) +6 advancer $109.95 USD replaces: 21007-1410 1. Choose your shipping method 14.00 Domestic USA Standard Ground 48.00 International USPS Express, tracked 44.50 Russia, USPS Priority, no tracking 8.00 each additional item in shipment 2.	This advance rotor advances the timing 6 degrees. With stock engines with stock compression ratios, there is more power in the low and mid. Part throttle power is improved - helping corner exit speeds. Improved in-town driveability. Works with injection remapping - Works with stock and aftermarket exhaust. Fuel retuning required with +6 advancer.
Transmission Shift Improvement
(sample star and sample spring w a properly oriented 1307 F-Pro detent arm) EVO Shift Star Kit SHFT-EVO-K97 $249.95  (includes 2 arms to cover both versions of undocumented zx12r arms, the F-Pro Shift Spring, The EVO Shift Star  and a clutch cover gasket. If you can tell us what configuration of arm you actually have in your bike, we can send a $229.95 kit with a single arm in it. DON'T just look at the fiche and tell us you have a 1307 arm.  You have to look at your bike's arm.) (not included oil pan or oil pump gasket) Add $20 for the Hybrid Ceramic Bearing upgrade. 1. Choose your shipping method 16.00 Domestic USA Standard Ground 50.00 International USPS Express, tracked 50.50 Russia, USPS Priority, no tracking 8.00 each additional item in shipment 2.	EVO SHIFT STAR kit Make shifting MUCH quicker and virtually eliminate missed shifts. The Shift STAR makes shifting even quicker and even easier than the below "Pro Kit". Includes Factory Pro's exclusive Shift STAR, HD detent spring and Microbearinged Detent Arm and clutch cover gasket. You must remove the oil pump and oil pan to install the star AND the clutch assembly to install the arm and spring. Oil pan and oil pump gaskets not supplied. No engine case splitting required, though.
(this is a picture of a "normal, official 1307 based " F-Pro detent arm) pn: SHFT-PRO-KAW-97 (installs with only clutch basket R&R) $149.95  (includes 2 arms to cover both versions of unducumented zx12r arms, the F-Pro Shift Spring  and a clutch cover gasket. If you can tell us what configuration of arm you actually have in your bike, we can send a $119.95 kit with a single arm in it. DON'T just look at the fiche and tell us you have a 1307 arm!  You have to look at your bike's arm.)   1. Choose your shipping method   14.00 Domestic USA Standard Ground 48.00 International USPS Express, tracked 48.50 Russia, USPS Priority, no tracking 8.00 each additional item in shipment	Pro Shift Kit The "F-Pro Shift Spring and Microbearing Detent Arm Kit" Make shifting quicker and virtually eliminate missed shifts. Factory Pro's Shift Improvement Kits make the shifting perform as well as the rest of the bike. Includes Factory Pro's exclusive F-Pro Shift Spring and Microbearing Detent Arm and clutch cover gasket. Stop missing 2nd gear.
BMC Air Filters
BMC RACE air  filter system FIB-25619R2 $129.95 USD (Yes, that's 2 air filters) 1. Choose your shipping method 14.00 Domestic USA Standard Ground 48.00 International USPS Express, tracked 44.50 Russia, USPS Priority, no tracking 8.00 each additional item in shipment	Will add ~1-2hp True HP at high rpm when EFI properly tuned. Filter is similar to other brands of cotton gauze and screen aftermarket filters, but, the RACE filter requires tuning and the STREET (below) shouldn't require retuning. However, even a stock bike with a stock air filter will run better with the fuel injection remapped.... Suggest cleanable BMC air  filter system (avail. direct from Factory Pro) for more power - click here / there for more information.
BMC STREET air  filter system FI-BMC-25619S $115.95 USD (Yes, that's 2 air filters) 1. Choose your shipping method 14.00 Domestic USA Standard Ground 48.00 International USPS Express, tracked 44.50 Russia, USPS Priority, no tracking 8.00 each additional item in shipment	Will add ~1hp at high rpm when properly jetted  and will "clean up" low-end richness when fully warmed upon stock carbureted bike otherwise. Suggest cleanable BMC air  filter system (avail. direct from Factory Pro) for more power - click here / there for more information.

ZX12 information:

Muzzy ZX12 exhaust system (as of Jan 1, 2002):
Must use some sort of aftermarket EFI mapping device with this system. With this exhaust, the lowend mapping is extremely important to dial in - otherwise, low rpm, as in "in-town driving" is poor.
Properly tuned, the Muzzy delivers very good power - better than many others.
The 4 gas EC997 dynamometer systems are the preferred method of tuning - as they can tune by engine smoothness - in addition to realtime HP and torque readouts.
Tuning an aftermarket FI "modifier" box on a dyno using an O2 (oxygen) sensor to guess at an "A/F Ratio" is totally misleading - not uncommonly resulting in  FI settings that can be 3 to 6 True HP less than potential best power. That especially includes "autotuned" power commanders. I just talked to a guy who spent 3 hours "autotuning" his racebike - only to have it still have problems at high rpm/part throttle (as in entering a corner / maintaining speed on racetrack).
Heck, in 3 hours, we could have properly tuned both fuel and ignition maps for best power AND smoothness manually!
Best to tune for power - not a fictitious "A/F Ratio"...........
If you hear someone say that "It didn't make any more power, but it's got a better fuel curve." Run away fast! That makes no sense - if the fuel rate was better - it would make more power.
Gee - am I the only one who knows that???? I hope not!
Marc

 Power Commander 3 and 3r and autotuning:
Oddly, (in direct clash with "autotuning salespeoples' claims) when measured under load, it is starting to be a trend that, even with the same fuel delivery rate - i.e. with pc map = zero map, the power output above 7k/100% throttle seems to degrade WITH the pc3 simply installed and that "autotuning" isn't tuning for optimum power....
Hmmm.....
One bike (Keith H. ~01/01/02), auto "tuned" in Florida by a "Power Commander Center", went from 150.3 peak to 156.6 peak when properly tuned for power - not, as it was - autotuned by residual oxygen values in the exhaust.
Retuned the pc3 for realtime power. Gained over 6 True HP at peak. Interesting. Yet, just another bad showing for o2 based autotuning schemes.
But a lot of us tuners already knew that residual exhaust oxygen tuning was not very optimal for power.

The other zx12 (Lawrence P. - 02/09/02), with a pc3r starting with the installed "zero" map maxed out at 138.4 True HP - after adjusting fuel for best power. Removed the pc3. Peak power jumped up to 145.7 True HP with no fuel changes.
The simple installation of the pc3 with a power optimized fuel map lost 5-6 over a stock, unmapped ECU?
Looks like something's wrong. And it ain't the EC997 dyno! They read the same every day.
Oh my, oh my, whatever will they do when they show that their optimum "A/F Ratio" does not equal best power or best 1/4 mile?????
Stay tuned.
TEKA EMS and the EC997 dynos will not have those pc3 and auto "tuning" scheme problems.

Referrals:

entropy
BAM
Join Date: Dec 2001
Location: Moo City
Posts: 893

I've been taking my y2000 ZX12 1427 to Dynojet shops for 5 years. A total crapshoot on hp/tq. REAL difficult to tell the difference that mods make.

Even worse, I lost 2 motors on the Dynojet dynos due to????
It got so that every sweep I crossed my fingers, prayed to every god I could think of.

Last Nov. I started going to Houston's Metric MC's EC997 Factory Pro dyno. What a difference.
The numbers are very consistent, predictable.
Maybe because the operator/owner (Andy) is religious about getting motor temps "right" before doing a session?
Maybe because the Factory Pro is just a better piece of equipment/system/method???

Best of all, although I can't prove it, the steady load seems MUCH, MUCH easier on the motor.
We are tuning my NA motor for the Texas Mile and during Jan/Feb have done 5 dyno days (3 with different cams, 2 with different injectors). No motor problems.
Holding the motor at 11,500 for 4-5 sec? It seems to love it. I no longer cringe.

Hp difference between DJ250 and Factory Pro? In the range of 15-20% Hard to tell exactly because DJ numbers varied 5-10%.

thumbs up to Marc & Factory Pro!

thumbs up to Andy of Metric!

__________________
use moderation in moderation

Last edited by entropy : 2006 02 23 Today at 07:35 AM.
