Curtis Cash
Chuckwalla

zx10r
11-22


Curtis Cash
Laguna Seca


   ECU reflash EVO Shift STAR kit
(Factory Pro's own copyrighted design)
Hybrid Ceramic Wheel Bearings Oil Additive



Unleash your bike's power and control



Pro Power
ECU Flash
by Factory Pro
  • zx10r specific Tuning
  • adjust IAP /  MAP  Fuel Maps for better race part throttle
  • adjust TPS Fuel Maps for better race power
  • adjust Ignition Maps for more race torque
  • Fuel Trim Maps for racing
  • Settings
  • Adjust RPM Limit settings
  • Secondary Throttle Plate (STP) Opening Maps
  • Retains last Power and TC settings
  • TC settings changeable "on the fly"
  • Disable
  • Disable 186 Top Speed Limiter
  • Disable Stock O2 Sensor for racing
  • Disable Exhaust Valve (exup) for racing
  • Retain last Traction Control Setting
  • Change Traction Control Settings on the fly
  • Specialties
  • Factory Pro Power  mapping is specially designed to be smooth at teeny throttle opening at high rpm -  for best traction and lap times. - without sacrificing high rpm power.

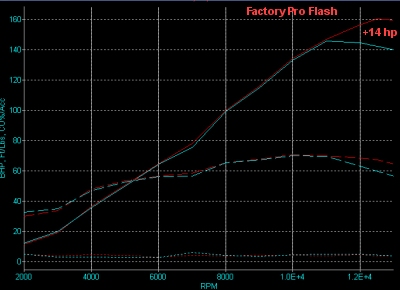

15 to 20 magazine (dynojet) hp increase!



It's  EASY "unleash" true hp on top for your trackday or AFM zx10r. Anybody can do it.

But it's HARD to make all throttle positions and rpms feel smooth as silk.

It takes years of track and tuning experience, a dyno that reads out "engine smoothness" and hp in realtime.

.......................

suggested:
Our Laguna Seca tested "George Map"
Unrestricted
disable FI codes
elegantly massaged ign and Secondary tables
slightly modded MAP and TPS fuel tables

Features:
Silky smooth part throttle power (you shouldn't have to rely on traction control)
Awesome midrange
Better high rpm then simplistic "unrestricted" ecu
Better, more linear TC operation
Retain TC and Power settings
"On the fly" Power and TC settings
Part throttle operation specifically tuned for trackday and roadrace
Full throttle power is set for Best Power for Drag Race
Best of both worlds.
25 years of EFI tuning experience

$425 / mail in
Special
$375
................................

We can re-reflash "already reflashed" zx10r ecu's.

.................................

$250 for GENERAL non-ca unrestrict reflash
marc@factorypro.com

(415) 472-4962

Hybrid Ceramic Wheel Bearing kit
http://image2.cccme.org.cn/i_supply/2010/7/6/2010122602022725549_125637846.jpg

$238.14
intro special

reg $340.20

5 bearing kit
front and rear wheel + sprocket carrier
pn: BE-HYCER-K74-11-19
1. Choose your shipping method

2.

Hybrid Ceramic Wheel  Bearings

5 bearing set

2 front wheel bearings
2 rear wheel bearings
1 sprocket carrier bearing

Tough steel races and almost  friction free Trisilicon tetranitride si3n4 ceramic balls.

Bearings are pregreased and ready to use.
Bearings have rubber seals that are easy to remove if desired.


marc@factorypro.com
Oil Additive


$30 / 4 oz bottle

Anti Friction
4 oz treats 3 to 5 qts synthetic oil

pn: LU-NUMBER-EIGHT-4
1. Choose your shipping method
2.

As I recall -

After a race's worth of running over 100 AMA and WERA bikes, we gained from 2% to 3% power,

The least I saw was 1% (JR's super loose built engine) and the most I ever saw was 4% (on a super tight street  built engine).

The other 98 bikes picked up 2% to 3% power - with most 2% and  2.5%

Lasts 2 and up to 3 oil changes (tapering off in effect).

Number
 Eight

Factory Pro's EVO Shift STAR kit - Fix the zx10r shift mechanism - used by most BSB teams.

Clutch cover gasket not included.

SHFT-STAR-K74/zx10r  $159.95
fits 11-21
replaces: oem star 13145-0051
No mods required to install
- case splitting not required! - 1 hour install

BACK odered

 800 869-0497     415 883-5620

1. Choose your shipping method

2.




F-Pro
EVO Shift Star

2018 British Superbike Champion!

Used in AMA, WERA, OZ, NZ race series.


i
nstallation requires

2-3 hours labor
and
 exhaust system R&R (remove & replace)
clutch basket R&R
and need new oil pan and clutch cover gaskets.

Installation available in San Rafael, CA

Wheelsmith / Factory
415 883-5620

Note:
When using a quickshifter,  you need to subtract 5ms to 10ms or the shifting will be notchy.
Example: with stock shift parts, shift kill time was 55ms.
With EVO shift star, optimal shift kill duration will be 40ms to 50ms.


Feedback after Star installation

Marc,
"There was a discernible decrease in the shift time , generally we now use 55ms for the lower gears down to 45 ms for the higher gears sometimes 40ms into 5th and 6th ( depending on how good the box is.....)"
Thanks, Nigel

npitsch@bigpond.com
Pitstop Motorcycles
22 Keelendi rd
Bellbird Hights  2325
NSW
 Australia
Mobile PH 0414940472


JG Speedfit - Leon Haslam - 2018 BSB Champions

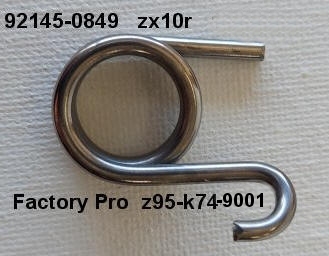

pn: z95-k74-9001
Spring is for


zx10r  11-22

$49.95

(replaces oem 92145-0849)
1. Choose your shipping method
2.

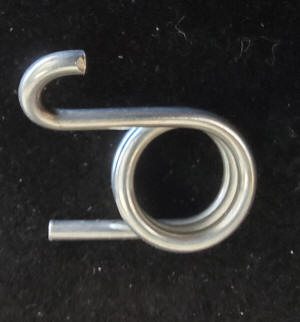

The Shift Spring

(this 10r aready has a good detent arm)


The Factory Pro  Shift Spring  Upgrade will upgrade your bike to "better than new" quicker, more consistent shift action.


Proven in 25+ years of pro level use.

Virtually eliminate missed shifts. especially 2nd gear  and 4th gear upshifts and all upshifts

Help eliminate 5th and 6th ghost neutrals.

Decreases shift process each shift.

Make shifting quicker and virtually eliminate missed shifts.


Helps prevent shift fork and gear engagement dog damage caused by missed shifts.

Installation: Slightly more complicated than replacing the clutch basket. It's right behind the clutch basket.

No case splitting required.

Feedback
Shift Star kit worked awesome!  Not one missed shift all weekend.  Easier to find neutral, too - Which is good because I have to put it in neutral to start it for some reason. Doesn't like to start with the clutch in. With the close ratio tranny, I did a lot of shifting.

Leigh Thomas - Mojave


trans shim erata

pn desc
92200-0050-062 28.3 x 34 x 1.6 splined  zx10r 04-16, zx600/636r 08-16
92200-0050-050 28.3 x 34 x 1.6 splined
92200-0050-040 28.3 x 34 x 1.6 splined
92200-0050-030 28.3 x 34 x 1.6 splined
92200-0050-020 28.3 x 34 x 1.6 splined
92200-0050-015 28.3 x 34 x 1.6 splined
92200-0138 22.1 x 32 x 1.4 spinning
92200-1522 splined and male ears
92200-1523 splined and female eared
