FIX clunky Honda shifting - eliminate missed shifts - make in-town driving silky SMOOTH - Closest thing to Formula 1 paddle shifter for a motorcycle!!

Call 800 869-0497 for info!

I put an EVO Shift STAR on my Superhawk recently and it made a huge difference. New bike bug bit and now I need one for the '04 CBR100RR! (It's ready!)
Great product.
Thanks,
Brad Crawshaw

Carburetor Tuning Kits

CRB-H77-1.7-RK
For Maximum low, mid and topend power for
Road and Track

$199.95 USD

This kit requires a bit more work to install than the 1.0 or 1.1-ti ProKit. The advantage is that the kit will produce a bit more power at all rpms than any standard, drop-in style kit. Tuning is actually easier after the installation at base settings.
There is no loss of lowend power.
Although not tested, there's no good reason why the 1.7-RK Kit wouldn't be useable with a completely stock exhaust system with stock mufflers.
This is simply the best kit.
The BMC filter is the nicest air filter available for the VTR - it's one piece, instead of the other filter that is available, which is a multi-part, comparatively complex unit.
Use below listed the Ignition Advance for best mileage and performance -
Emulsion tube information
Also - as with ALL VTR1000's - the TPS must be checked and set to 500 +/- 10 ohms - or low speed cruise smoothness is impossible to attain.
They have been seen as much as 900 ohms as delivered.

July 2006 Adrian Davis wrote:

hi marc, your advice about the tps on the vtr was spot on. mine measured 919 ohms after taking it down to 509 ohms, its a different bike and returns 120 miles per tank as apposed to 90.
its running sweet.
thanks again - ps: your website is ace.

Sept 15, 2010 Mark Petraccoro wrote

Hey guys, been fighting a losing battle with my Dynojet needles for my Super Chicken. Ordered your jet kit and it's like night and day! Thanks for all your support. I fabricated a true 2 into one exhaust....22 inch mid pipe with Hot Bodies Racing Growler canister, K&N air filter, NGK Iridiums..... running 50 pilots, 182/185 mains, needles on # 5 groove with 2 shims, set the TPS to 490 ohms and she runs like a raped ape! Thanks again....you guys rock!

CRB-H77-1.1-TI $129.95 USD

Titanium needles for lifetime use. Adds more low-end / midrange, if the proper main jet is selected, more top-end power. Easy to install and tune - no slide drilling. The Ti ProKit has the same needle profile as the 1.0 kit.
Works with a completely stock exhaust system, stock headers and full systems and has enough jets for the BMC air filter.
Emulsion tube information!
Also - as with ALL VTR1000's - the TPS must be checked and set to 500 +/- 10 ohms - or low speed cruise smoothness is impossible to attain!
They have been seen as much as 800 ohms as delivered.

CRB-H77-1.0 $109.95 USD

Stainless needles for lifetime use. Adds more low-end / midrange, if the proper main jet is selected, more top-end power. Easy to install and tune - no slide drilling. The Ti ProKit has the same needle profile as the 1.0 kit.
Works with a completely stock exhaust system, stock headers and full systems and has enough jets for the BMC air filter.
Emulsion tube information!
Also - as with ALL VTR1000's - the TPS must be checked and set to 500 +/- 10 ohms - or low speed cruise smoothness is impossible to attain!
They have been seen as much as 800 ohms as delivered.

Hybrid Ceramic Wheel Bearings

$199.95
Hybrid Ceramic intro special

reg $299.95

4 bearing kit
front and rear wheel bearing set
pn: BE-HYCER-H77-98-05

Hybrid Ceramic Wheel Bearings

4 bearing set

2 front wheel bearings
2 rear wheel bearings

(does not include sprocket carrier bearing)

Tough steel races and almost friction free ceramic balls.

Bearings have rubber seals that are easy to remove if desired.

marc@factorypro.com

Ignition Components

RTR-HON-77-02 $109.95

DISCONTINUED

Improve MILEAGE!!!! (and power)
Our suggested standard advance rotor advances the timing 4 degrees. With stock engines with stock compression ratios, there is more power everywhere. Part throttle power is improved - helping corner exit speeds. Improved in-town drivability. .5-1.5hp top-end increase. The VTR's poor mileage is increased, also - as much as 10% under cruise conditions from reports back.
Works with or without a Carb Recal Kit - Works with stock and aftermarket exhaust.

Transmission Shift Improvement

Shift Star Kit

pn: SHFT-EVO-H77/vtr1000

$239.95
(star, arm and spring kit)

rpl 24315-mv9-932 star, 24430-mBB-000 arm and 24435-mbb-000 spring

Add $20 for Hybrid Ceramic Microbearing

Factory Pro's
Shift STAR kit

The full kit (stage 1 and stage 2 kit combination)

THE ULTIMATE IN SHIFTING Precision

(star, arm and spring kit)

Make shifting MUCH quicker and virtually eliminate missed shifts. Helps address missed shifts caused by poor shift detent "star" profile. MUCH more consistent shifting!
Not at liberty to disclose WHO used this kit on their F4's.........

User's comments

NOTE: Quickshifters must decrease shift kill time by aprox. 10ms.

Installation:
Remove right side clutch cover.
Remove clutch assembly (impact wrench and 30mm socket)
Install new EVO Shift STAR, Microbearing Detent Arm and and Factory Pro Detent Spring.
Reinstall clutch and cover. Sealant only - No gasket required
No case splitting required.

Estimated install: 1 hour, if you are super quick and have all the tools laid out.
1.5 - 2.5 hours at normal human speeds and what we would charge for in our shop.
3-4 hours if you are a "working hobbyist" and have impact and sockets.

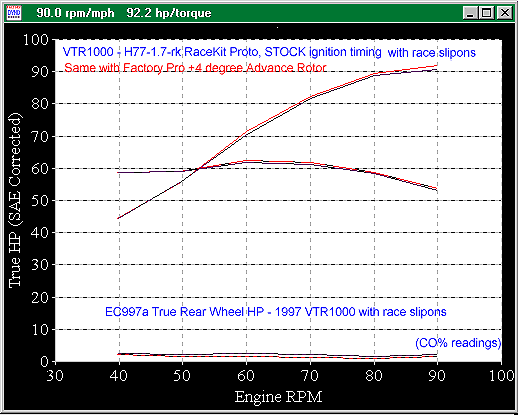

This graph shows the difference between original ignition timing and our +4 Advance Rotor.
The +2 and +6 rotors, when used with Factory Pro #1.7-RK RaceKit, did not make the same improvements throughout the powerband.
The 1-2 True HP increases show part of the picture, but a big improvement in throttle response was realized, with more snap response evident at every rpm.

(Remember, these HP numbers are True Rear Wheel HP Scale, measured on an EC997 Eddy Current Dyno, so they will be 12% to 18% lower than lightweight inertia dyno readings!)

Tech

General Technical Support
including emulsion tube location!

From: Marz <marrz@primus.com.au>
3:28 AM

Subject: Kit Parts
To: info@factorypro.com

The advance plate has made a difference to mileage and throttle response, just like you said it would... It's so hard to find companies that produce a product that actually does what it says. Keep up the good work, I'm one happy customer so far.

Subject: Re; Jet kits results...
Date: Fri, 27 Oct 2000 09:26:09 -0500 (CDT)
From: bike-freak@webtv.net
To: info@factorypro.com

Just a quick note to tell you what a fine job you do on R&D. I just installed a Ti kit in my 99 ZRX (Kerker slip-on, K&N filter, foam removed from snorkel throat, and trimmed side cover). 100 mains, e-clip on 3rd slot, and 2.5 turns on mixture screws. Pulls great from idle to redline using your recommended base settings. By the way my other 3 bikes (98 VTR, 97 Bandit 1200S, and 94 CB1000) have had the same results with your kits. I never even consider purchasing kits from you know who.

HawkRider0@aol.com wrote:

Hi,

Just got a 1.1 Ti kit for my '98 Honda VTR1000. What are your recommended carb settings with a K&N filter and Sudco or Hindle slip-ons? Power is great where I have it. I never thought wheelies could be this easy!

But...idle fluctuates between 900-1400 rpm depending on heat of the engine, and sometimes it dies when coming to a stop. My current settings are:

#50 slow jet
182 main front
185 main rear
clips on 4th from top
mixture screws 2.5 turns out

I'm thinking I need to turn the mixture screws in about 1/2 turn. What do you think?

Thanks!

Greg N.
Charleston, SC

Hi Greg,
Try just adjusting the front cylinder fuel screw only for best possible idle. Once you've done that, adjust the rear cylinder fuel screw.
Don't fret if they are different.
Once you've done the best you can with this method, email settings. Sometimes, there's more that can be done - but you have to do the fuel screws first to diagnose!
There are NO absolute settings for EVERY vtr!
Cheers!
Marc

From: Dmowen5@aol.com Wed 5:28 PM

Subject: VTR 1000
To: info@factorypro.com

I installed a spark advancer, works great, doesn't seem to vibrate as much as before. Could be that my nerve sensors are gone. Anyway it sure runs great.
Needles are in the #5 pos. and #182 jet in front carb and #185 rear works great.
Thanks for all your help in the past.

Use 5 minute epoxy to seal the overlarge holes and a very sharp (aka: "new") drill bit to redrill them smaller.

Simon Wells from Melbourne

Australia VTR1000 powered CRB-H77-1.7-RK, RTR-HON-77-04
September 2012

+ 2 degree increases mileage
RTR-HON-77-02 ignition advance	CRB-H77-1.0 CRB-H77-1.1-TI CRB-H77-1.7-RK	SHFT-EVO-HON-77 Shift STAR kit

*Honda VTR1000* *True Rear Wheel HP*
Test #	Test Description	from	to	changes	Results

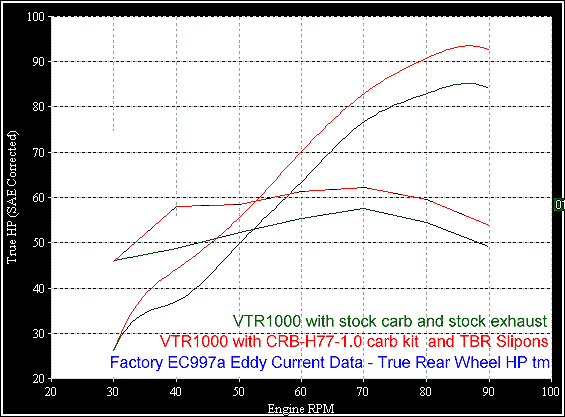

*Test #1:*	*Stock vs. ~2 inch id race slip-ons* *Factory Pro Carb Recalibration Kit*	stock exhaust and stock carburetion	to	slip-ons and *CRB-H77-1.0* Factory Carb Recal. Kit	More power and response everywhere.
*Test #2:*	*stock ignition timing vs. RTR-HON-77-04* *Race Slip-ons, H77-1.7-rk*	stock ignition timing	to	RTR-HON-77-04 Ignition Advance Rotor	More power at full throttle, more power at part throttle, Better fuel mileage reported by everyone who reported.

Honda VTR1000 Superhawk, 98 and up Factory Pro Series H77 The VTR1000, with the addition of a set of slip-on mufflers, makes one of the nicest v- twins sold recently.

Tech

General Technical Support including emulsion tube location!

Honda VTR1000 Superhawk, 98 and up
Factory Pro Series H77

The VTR1000, with the addition of a set of slip-on mufflers, makes one of the nicest v- twins sold recently.

General Technical Support
including emulsion tube location!
