Ducati

M600 and 600ss, 94-01

The Ducati 600 Series models are excellent bikes, delivering typical Ducati style and handling performance at an affordable price as compared with the 900's.



Finger Adjustable "Long Boy" extended fuel screws

Long Boy Fuel Screw Kit
pn: 3020m1-D06
replaces 13440181a

$44.95
 with 2 new extended screws, springs, washers and o-rings.

1. Choose your shipping method

2.

Be FAMOUS!
Send us a pic
ture of your installed fuel screws.
marc@factorypro.com



"Long Boy"
Finger adjustable extended Fuel Screw

Frustrated with trying to find an "almost 90 degree"  screwdriver to fine adjust your fuel screws for best idle and cruise?
Use Factory Pro's new "finger adjustable" fuel screws to adjust fuel screws for best throttle response. Traveling to high altitude? It's easy to lean out the lowend temporarily.

Make your life easier!

Installation:
Remove old short stock fuel screws, old o-rings, old washers and old spring. The o-ring might be stuck in the carb, so, take a light and make sure it's really out if it didn't come out with the screw (or you can't find it after you took out the screw)
Use a small bent wire to pull it out if it doesn't drop out. Keep the old parts for "spares".


Raul Meono's Famous Fingers
Each screw assembly comes with:
2 Long Boy fuel screws
 2 new o-rings
2 new washers
2 new springs
Ducati Carburetor Jetting Kits


Carb kit with needles, pilots, emulsion tubes and extended fuel screws

$189.95
  combination price

and saves on shipping.
1. Choose your shipping method

2.


A Fresh start

CRB-D06-1.1-NJ-FS
1. Ti Pro carb kit
2 new nickel plated Factory Pro emulsion tubes
2 extended fuel screws with new springs, washers and o-rings

The number 1 internet recommended Ducati kit. The one with controllable midrange.
.................

Hi Marc
Received parts with thanks on Monday, Excellent service!
I have fitted the needle valves, The Duke runs a treat, best it's ever been.
Once again, thanks for the great service and superb replacement parts.
Steve Klee  UK
November 2006

CRB-D06-1.1-TI   $99.95
(pilots, adj needles, clips, a selection of mains, starting settings, fine tuning  instructions, allen screws for carb tops or float bowls)
1. Choose your shipping method

2.

Standard drop-in carb kit

Adds more low-end / midrange, if the proper main jet is selected, more topend power. Easy to install and tune - no slide drilling!
Suggest using a BMC replacement air filter for increased airflow.


Make float height setting easier! Look at the bottom of this page -


CRB-D06-3.1-TI   $109.95
(pilots, adj needles, clips, a selection of mains, starting settings, fine tuning  instructions, allen screws for carb tops or float bowls)
1. Choose your shipping method

2.

Config 30

For when you remove the airbox or cut off the top of the airbox.


Adds more low-end / midrange, if the proper main jet is selected, more top-end power. Easy to install and tune -
no slide drilling.


Make float height setting easier! Look at the bottom of this page -


 New main jet o-rings
6 pcs
Mikuni # 007-790


$5 for 6 orings
1. Choose your shipping method

2.


New
o-rings for Mikuni
"press-in" n208099 main jets.


If you are jetting older carbs, it is a good idea to get new main jet o-rings when buying a carb kit.

Float bowl gaskets


for BDST38 carbs
reference: 134.4.003.1A
$16 for 2
1. Choose your shipping method

2.

CRZ-EMU-100120K  $74 for 2 tubes

1. Choose your shipping method

2.

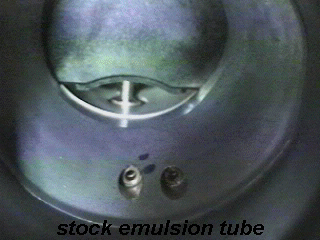

Replace worn bare brass needle jets in stock carbs with Factory Pro's own stock replacement nickel plated needle jets.

The needle, stock or aftermarket, will wear the needle jet orifice oblong - causing excess fuel to flow at cruise and low rpm. Additionally, the fuel that does get released is in larger, less burnable droplets. Replace the emulsion tubes / needle jets if there is more than 10k miles of varied use or 5k miles of in town driving on the bike before trying to tune. You will save time and energy.

Note that, with fuel level adjustments, you can make some mixture adjustments with the "fuel level", as adjusted by "float height" changes.



bad enough wear to richen low speed mixture



Lightweight Shift Centering Spring
$49.95

Click Here to buy


SPECIAL INTRO!
$39.95


Just rode bike awesome shifting, smooth, smooth smooth
thanks
Mike Hoak
August 2013

Lightweight Shift Centering Spring



For when you decide that you want lighter feeling shift lever action for better feel.
A lighter foot shift pressure is less unsettling.
Decreases lever effort required to make a shift.
 Makes foot shift pressure more like other sportbikes.
Since you are not having to push so hard to move the lever, it's easier to find neutral.

Like your rearsets? But, no matter how you lube, shim, adjust the arcs, angles and lengths, it's still annoyingly stiff to shift?



TL-float height gauge     $59.95
1. Choose your shipping method

2.
The only way to accurately measure float heights. Works on nearly every carburetor.

True Rear Wheel Horsepower - Factory EC997® Eddy Current Dynamometer

Float Height Setting Trick for 38mm "Mik's"
One of the problems with setting the float height on the 38mm downdraft Mikuni's that come on Ducati's, yzf 750's, tdm 850's and fzr1000's, is that the darn white plastic "float cage" keeps popping out of the carb body unless you hold it in.

When you hold it in with your fingers, you always flex the cage frame and distort the reading that you are setting the float height at..... Aaarrggghhh!!  :-)

After spending 45 minutes setting some yzf750 carbs in the sweltering Mid Ohio heat of summer, I decided to make a float cage holder and sell 'em! I'd make a million  $$!!

When I got back to work, I set up and made a pile of cute little flat braces.

As I was sitting there, admiring my cleverness...... one of my parts guys wandered by and asked what was I making? I showed him that you could just take my clever little piece of aluminum and hold those float cages right tightly up into their seated position - so you could get consistent float height readings.

He says.....
It looks like you could just put the float bowl on with the front holes on the bowl lined up with the rear holes on the carb body and slap some screws in and it would do the same thing...........
I bought him lunch with the million $$ I didn't make....



Marc

Hello.  Here’s the pics you asked for!  Thanks for the help, the bike runs BEAUTIFULLY now, lots more power!  The front end now comes up on the throttle – whereas it didn’t before!  There’s another pic in there too where I used a bar code to measure the bowls.  I found this a lot easier than using a ruler.  I measured the bar next to the number “8” on my barcode to be the recommended height on my bike – 14mm.

-Mike Beary

Thanks Mike, for the pics!
Marc Salvisberg



Absolutely NO carb parts sold in California.
