WR450f
04-06 and 07-15 |
|
|
WR450f
04-06 and 07-15 |
| Factory Pro Shift STAR kit - a MUST HAVE to virtually eliminate missed shifts | |
|
wr450f 04-15
replaces 2s2 stk star, 3xk arm and 26021 spg |
quad yfz450 09-20 2s2 quad yfm700r 13-20 2s2 bike WR450f 04-15 2s2 Evo Shift STAR Kit The EVO Shift STAR Upgrade kit will upgrade your bike to the latest, greatest shift action. Perfect for when you are tired of paying attention to shifting and just want it to shift right. MX. SM, Desert, trail - Virtually eliminate missed shifts - decreases shift process 5mm to 15ms (must re-set shift kill duration if using a Quickshifter) Make shifting MUCH quicker and
virtually eliminate missed shifts. Helps address missed shifts
caused by poor shift detent "star" profile. The Factory Pro Shift STAR kit is an awesome upgrade for the Yamaha. Installation: Slightly more complicated than replacing the clutch basket. No case splitting required.
Installation
Instructions - click here Feedback Yamaha Shift Star kit worked awesome! Not one missed shift all weekend. Easier to find neutral, too - Which is good because I have to put it in neutral to start it for some reason. Doesn't like to start with the clutch in. With the close ratio tranny, I did a lot of shifting. Leigh Thomas - Mojave area
|
| Keihin FCR Carb Recalibration Kits - patented Factory Pro HDJ styl | |
|
pn: CRB-CY46-1.7-RK $99.95
|
Now with the new, even cleaner running, patented
The wr450 carb recal kit was designed with as much care and attention to detail as we give to our EC997 dynamometer and test routines, our Shift STAR shift improvement kits, our Billet Engine Covers and all of the other products that the quickest road racers in the USA and World used to collect a total of 9 WERA and F-USA national Championships - along with the Suzuki Cup World Champion, Rob Jensen. We've now entered the off-road arena to bring some new, exciting, well proven concepts, such as our easily tuneable "HDJ" style jet kits and several other things that we've picked up along the way. One of the improvements was dyne systems design
and test routine design - We have been saying for years that inertia
dynos were misleading and now, these new "HDJ" carb kits show how much
better the EC997 load dynos are
than inertia dynos
when it comes to developing any performance products. Sounds a bit egotistical?
Perhaps it sounds that way - but, I think that we've got quite a few
local Norcal racers that we've done fine tuning work for that would
agree with us. The Factory Pro HDJ kits, designed by Marc Salvisberg, will run more evenly over a wider temperature and altitude range than any other carb kit and will produce 3% to 8% better power than another carb with the "best main jet" in it, when properly tuned and tested under a real load. This does not mean an inertia dyno - though, power will be better with a dealership level dyno, also. Thanks! 800 869-0497
Call: |
| Billet Engine Cover | |

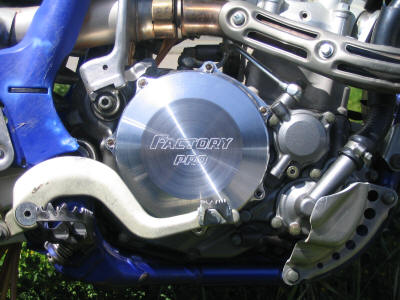

 Billet Engine Cover
Awesome Billet Clutch Cover!!!! Like our CRF, DR and KLX Covers
- Virtually Indestructible! Machined from a solid block of incredibly strong, fine grain,
extruded aluminum alloy in northern California on the latest in high
performance CNC machining centers. Unlike the stock, cast aluminum cover - the Factory Pro cover,
almost 99% of the time, prevents the brake pedal from punching a hole
- You'll make it home!! and it looks bitchin'! $189.95
Intro Special!
|
|
| Improve your shifting | |
Yamahas yz250f and yzf450f Shift STAR Installation
 |
Remove the clutch cover. | Remove the clutch
assembly (use your shop manual) |
 |
Remove the little top hat collar and don't lose it. | |
 |
Pinch the pawls together and gently remove the pawl holder. Hold around the outside so the pawls, springs and plungers stay together. | |
 |
Turn the star till it reaches
the stop (it's either 6th or 1st gear). Turn the clutch shaft to get
it to go into the "next" gear. Unscrew the center stud - it takes a deep 12mm socket.
|
|
 |
||
 |
Use a 10mm socket and remove
the 6mm pivot bolt for the stock detent arm.
|
|
 |
This is what comes out. You will replace the detent arm and the spring with new Factory Pro parts. |
|
 |
Put in the new Factory Pro
Microbearing Detent Arm and new heavier duty spring. A good hint is to Loctite the pivot bolt with Blue Loctite. Not absolutely required, but a nice touch. |
|
 |
Lever the arm out and slip in...... | |
 |
the new Factory Pro Detent STAR. Install the center stud. | |
 |
There's the new detent arm and the new preproduction detent STAR. | |
 |
 |
Here's how the shift pawl holder
is assembled. These are the spring loaded plungers. |
 |
 |
Next, install the pawls. |
|
|
Squeeze the pawls in and slip into the ID of the Detent STAR. |
Factory Pro Around the World
 |
WR540f KONSTANTIN MEZHUEV Winter in Moscow, 2009 |
 |
WR540f KONSTANTIN MEZHUEV Winter in Moscow, 2009 |
| Absolutely NO carb parts sold in California. | ||
 |
New and improved Finally - Quick, easy, cost effective
Suzuki tuning
with no expensive "add-on boxes" |
|
|
Contact Factory
Pro 415 883-5620 no fax
