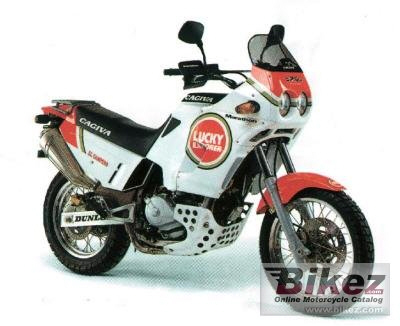

Cagiva 750 Elefant

 (w/ stock 38mm downdraft CV Mikuni carburetors)

Cagiva elefant 750cc 1996 model carbs Mikuni BDST 38 B148

Cagiva 750 stock jet sizes
 Main                              132.5
starter                             70
Jet needle                      5c19
needle jet                       y6
pilot (idle)jet                  40

Regards Brian Bradwell

Jake's 750 Elefant Project bike - Clink here for a new window and story
Finger Adjustable "Long Boy" extended fuel screws

Long Boy Fuel Screw Kit
pn: 3020m1-CG07
 replaces 13440181a

 $44.95
 with 2 new extended screws, springs, washers and o-rings.

1. Choose your shipping method

2.

"Long Boy"
 Extended Fuel Screws

Frustrated with trying to find an "almost 90 degree"  screwdriver to fine adjust your fuel screws for best idle and cruise?
Use Factory Pro's new "finger adjustable" fuel screws to adjust fuel screws for best throttle response. Traveling to high altitude? It's easy to lean out the lowend temporarily.

Make your life easier!

Installation:
Remove old short stock fuel screws, old o-rings, old washers and old spring. The o-ring might be stuck in the carb, so, take a light and make sure it's really out if it didn't come out with the screw (or you can't find it after you took out the screw)
Use a small bent wire to pull it out if it doesn't drop out. Keep the old parts for "spares".

Each screw assembly comes with:
2 Long Boy fuel screws
 2 new o-rings
2 new washers
2 new springs



SUGGESTED
This Factory Pro Carb kit,  new Factory Pro plated needle jets and finger adjustable extended fuel screws

Carb kit, tubes and fuel screws

$189.95  combination price

Saves on shipping

1. Choose your shipping method
2.


A Fresh start

CRB-CG07-1.1-NJ-FS
1. Ti Pro carb kit
2. new nickel plated emulsion tubes
3. extended fuel screw set

The number 1 internet recommended kit.

.................

Hi Marc
Received parts with thanks on Monday, Excellent service!
I have fitted the needle valves, The Duke runs a treat, best it's ever been.
Once again, thanks for the great service and superb replacement parts.
Steve Klee  UK
November 2006
Factory Pro Carb kit (Carb kit without new Factory Pro needle jets or fuel screws)

Standard Premium drop-in carb kit
 $129.95
1. Choose your shipping method
2.


CRB-CG07-1.1-TI
(carb kit only)
Adds more low-end / midrange, if the proper main jet is selected, more top-end power. Easy to install and tune - no slide drilling!
Suggest using a BMC replacement air filter for increased airflow.
Make float height setting easier! Pick up a Float Cage Holder for Mikuni 38mm carbs  - See bottom of this page -
This is the kit that brings back that lowend performance that you lost with that dynojet kit -

 New main jet o-rings
6 pcs
Mikuni # 007-790
$5 for 6 orings
1. Choose your shipping method
2.


New o-rings for Mikuni
"press-in" n208099 main jets.


If you are jetting older carbs, it is a good idea to get new main jet o-rings when buying a carb kit.
Nickel plated needle jets - Factory Pro


CRZ-EMU-100120K  $74 set of 2 pieces

1. Choose your shipping method
2.

CRZ-EMU-100120M/K
Factory Pro design stock replacement Emulsion Tubes

Replace worn needle jets in stock carbs. The needle, stock or aftermarket, will wear the needle jet orifice oblong - causing excess fuel to flow at cruise and low rpm. Additionally, the fuel that does get released is in larger, less burnable droplets. Replace the emulsion tubes / needle jets if there is more than 10k miles of varied use or 5k miles of in town driving on the bike before trying to tune. You will save time and energy.
Note that, with fuel level adjustments, you can make some mixture adjustments with the "fuel level", as adjusted by "float height" changes.


Float bowl gaskets

for BDST38 carbs
reference: 134.4.003.1A
$16 for 2
1. Choose your shipping method
2.


Lightweight Shift Centering Spring
$39.95

Click Here to buy

SPECIAL INTRO
$29.95


Just rode bike awesome shifting, smooth, smooth smooth
thanks
Mike Hoak
August 2013
Lightweight Shift Centering Spring



For when you decide that you want lighter feeling shift lever action for better feel.
A lighter foot shift pressure is less unsettling.
Decreases lever effort required to make a shift.
 Makes foot shift pressure more like other sportbikes.
Since you are not having to push so hard to move the lever, it's easier to find neutral.

Like your rearsets? But, no matter how you lube, shim, adjust the arcs, angles and lengths, it's still annoyingly stiff to shift?
Float Height setting tool - relatively universal




TL-float height gauge
$59.95
1. Choose your shipping method
2.










Float Height Setting Trick for 38 Mik's
One of the problems with setting the float height on the 38mm downdraft Mikuni's that come on Ducati's, yzf 750's, tdm 850's and fzr1000's, is that the darn white plastic "float cage" keeps popping out of the carb body unless you hold it in.

When you hold it in with your fingers, you always flex the cage frame and distort the reading that you are setting the float height at..... Aaarrggghhh!!  :-)

After spending 45 minutes setting some yzf750 carbs in the sweltering Mid Ohio heat of summer, I decided to make a float cage holder and sell 'em! I'd make a million  $$!!
When I got back to work, I set up and made a pile of cute little flat braces.

As I was sitting there, admiring my cleverness...... one of my parts guys wandered by and asked what was I making? I showed him that you could just take my clever little piece of aluminum and hold those float cages right tightly up into their seated position - so you could get consistent float height readings.
He says.....
It looks like you could just put the float bowl on with the front holes on the bowl lined up with the rear holes on the carb body and slap some screws in and it would do the same thing...........
I bought him lunch with the million $$ I didn't make....



Marc

Hello.  Here’s the pics you asked for!  Thanks for the help, the bike runs BEAUTIFULLY now, lots more power!  The front end now comes up on the throttle – whereas it didn’t before!  There’s another pic in there too where I used a bar code to measure the bowls.  I found this a lot easier than using a ruler.  I measured the bar next to the number “8” on my barcode to be the recommended height on my bike – 14mm.

-Mike Beary

Thanks Mike, for the pics!
Marc Salvisberg
