Robert Jensen, 2006 - on the way to another win!
Robert uses his own Factory Pro EC997 Dyne System with Hi Speed 4 gas EGA to develop maximum power and best smoothness -
That's what it takes to be the #1 privateer.

 Suzuki gsxr750

11-19

Jim Vest builder

Factory Pro's
 Teka SFI
Suzuki FI programming tool


Factory Pro's
 GSXR Shift STAR Kit
wicked good shifting!



Unleash your bike's power and control


Factory Pro
Race bike Pro Power Flash

 custom
(need the bike for custom mapping)

  • adjust IAP Fuel Maps for better race part throttle
  • adjust TPS Fuel Maps for better race power
  • adjust Ignition Maps for more race torque
  • Secondary Throttle Plate (STP) Opening Maps
  • Fuel Trim Maps for racing
  • Adjust RPM Limiter
  • Disable Top Speed Limiter if present
  • Disable Stock O2 Sensor for racing
  • MS0 map  light gr / bk ungrounded
  • MS1 map  light gr / bk grounded


Phenomenal? - Delimit your trackday or race bike.
Remove high rpm power restrictions
Change rev limiter
Modify ignition timing and fuel tables

"Phenomenal"? That may be pretty impossible to do on a 750 with an ecu reflash!

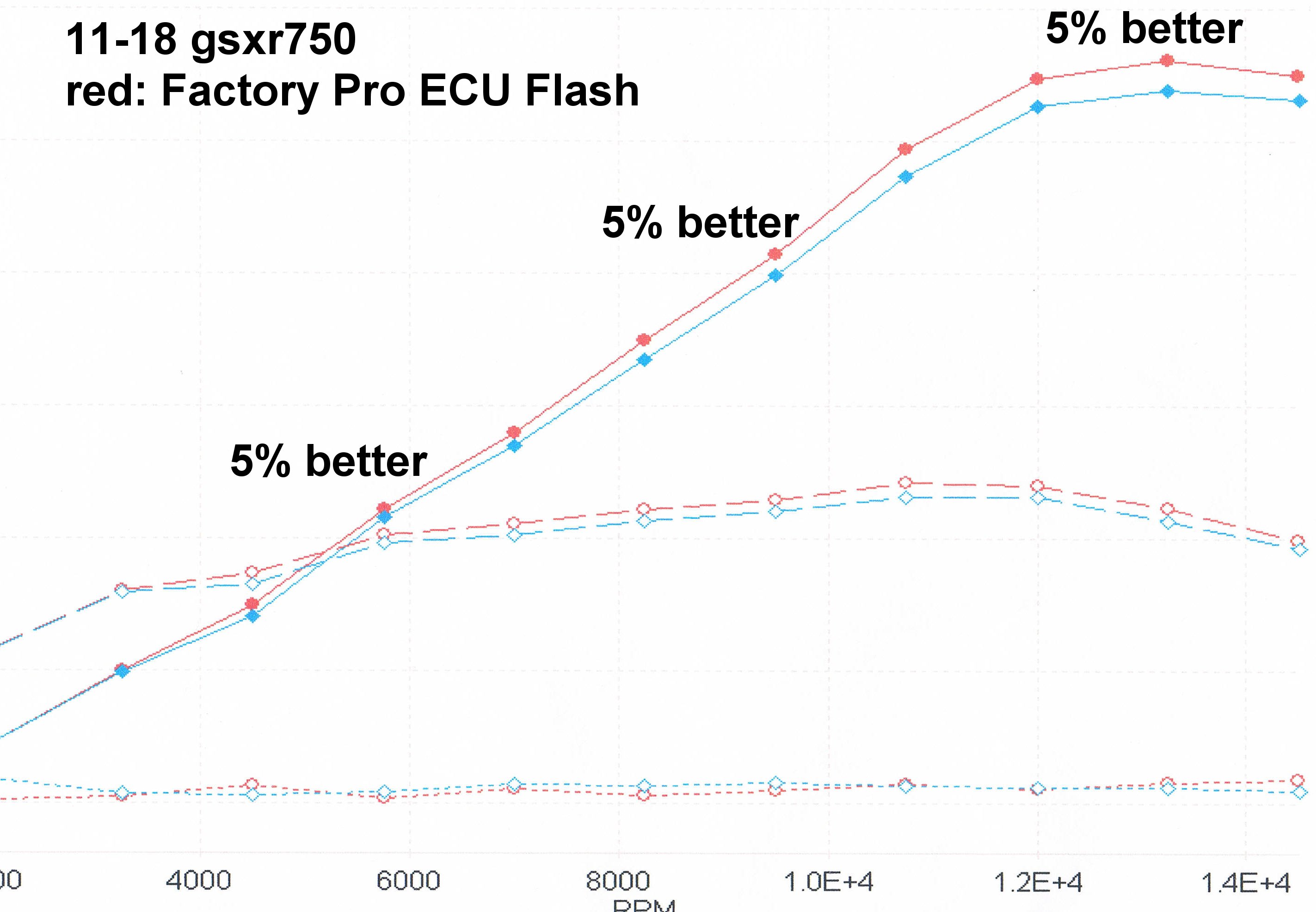

But when you are talking small displacement bikes, a 2 to 4 hp increase in part throttle, midrange or peak power might easily be 5% to 10% better than a  stock or inelegantly reflashed ecu.

Some things are not possible to tune on a dyno and require track feedback to refine - that's why a simple "delimited" ecu reflash doesn't provide that last 10% of power or silky driveability that a track refined ecu reflash provides.

We have all learned that each bike, even with the same aftermarket parts, requires different mapping than it's identical twin bike. That's why when someone  "downloads the perfect mapping" off of some website for a pc or Bazzaz, that it only has a 10% chance of being perfect "on YOUR bike".
With 35+ years of tuning experience, Factory Pro knows that the key to silky smooth and strong  running is individualized, perfect tuning on each bike - That's why we do tuning for people all over.

 ................................


 ex300  mail in ECU

Delimit - generic    $200

remove speed limit if present -
change rev limit -
 STP secondaries set to 100% on both acc and decel -

Race ECU reflash - semi custom - mail in ecu
o
Subtle modification of STP acc and STP decel tables
 subtle ignition table mods
unify fuel and ignition tables
raise rev limit a bit
elim O2 sensor for race use

Positive feedback rating
(April 2015:  reflash ecu guy says his bike is was better. More mid-range. better on off throttle. He says thanks !  ref: Paul F.)

$375 (regular price $425)
Reflash and TUNE to Best Power - custom tune on ec997 dyno
 (not power losing autotune to an AFR)
Subtle modification of STP acc and STP decel tables
 subtle ignition table mods
unify fuel and ignition tables
raise rev limit a bit
elim O2 sensor for race use
Custom Tune FUEL maps to your race bike
 with your Power Commander + race only reflash.

$675 - $775
Simple delimit: 100% Secondaries, raise rev limit, unify fuel and ign maps, blanket ign mod
$200

marc@factorypro.com

(415) 472-4962 or  (800) 869-0497
m-f, 9-4 pacific time

Hybrid Ceramic Wheel Bearings


$378.55
5 bearing kit

front and rear wheel + sprocket carrier
pn: BE-HYCER-S70/gsxr750/11-19
1. Choose your shipping method

2.





Hybrid Ceramic Wheel  Bearings

5pc bearing set
Tough 52100 steel races, rubber seals and lightweight, almost  friction free, silicon nitride ceramic balls.

Bearings are pregreased and ready to use.
Bearings have rubber seals that are easy to remove if desired.


marc@factorypro.com
Oil Additive


$30 / 4 oz bottle
Anti Friction
4 oz treats 3 to 5 qts synthetic oil

pn: LU-NUMBER-EIGHT-4
1. Choose your shipping method
2.
As I recall -

After a race's worth of running over 100 AMA and WERA bikes, we gained from 2% to 3% power,

The least I saw was 1% (JR's super loose built engine) and the most I ever saw was 4% (on a super tight street  built engine).

The other 98 bikes picked up 2% to 3% power - with most 2% and  2.5%

Lasts 2 and up to 3 oil changes (tapering off in effect).

"Concentrate 8"

Shift kits


Shift Spring

$49.95

pn: z95-S70/S01H00-0590

$49.95

1. Choose your shipping method

2.



Shift STAR


Daniel Garza wrote:

DAM!!!!!  my hats off to the people who did the R&D on the star! Man it shifts awesome.  Billy said my stock piece was already loose so it worked out great.  he says hi back at you.  anyways great product

thanx  -  danny

Evo Shift STAR
Specifically, the late style gsxr shift action is very flat feeling and gives very little tactile feedback as to confidence that it's really in gear or not. I hate it when you shift and you can hear the shift mechanism sort of  lazily "kathwaka" into it's "maybe" final gear location. I like a confident, proper "snick"!
They had it so close to "almost good"  in 99 - I'm not sure why they changed it for the "non-better".... Oh well - After redesigning and testing and redesigning and testing, and redesigning and testing...... I now see how easy it is to get it wrong, though.
We have a new detent "star" with a copyrighted profile (yep, the "science failed, so, it's artwork - so it's copyrighted) that includes a peculiar combination of compound arcs and radii that produces a shift action that makes it almost impossible to miss a shift ("almost" is the key word here!), especially 2nd gear in upshifts and all the downshifts - At least, if you miss 2nd, now, you will be REALLY surprised - cause it's now such a rare occurrence.
Downshifting confidence is 100% easier and better - just as important as not missing upshifts.
Beautifully machined on multi Axis CNC machinery, machined from solid Cro Mo steel bar stock, heat treated, Gold Zinc plated, a complex radii, beautiful part.

Installation:
The star, arm and spring are located behind the clutch basket. 1-2 hours to install.




EVO Shift STAR


$139.95


1. Choose your shipping method

2.

Ignition timing Tech







Dyne System
We use the EC997 Low Inertia Eddy Current dyne system, exclusively. It's fast and accurate load and rpm control allows much better accuracy and allows us to incrementally tune to finer degrees than common dealership level dynos. A lot of small increments add up to a significant chunk of power!
To see a good dyno (Factory Pro EC997....) do a power check at a 14k to single digit rpm precision -  click here  Try that with a dealership level dyno........

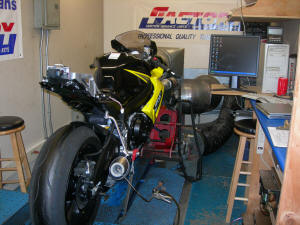

Kim Nakashima's 06 750 at 10pm		 Kim Nakashima     April 19, 2006

Tuned with Suzuki Denso Kit ECU (Yoshimura EMS Pro)
TiForce exhaust (only has one short muffler)
"Built" engine.
~131 True HP (as compared to ~120 to 124 on an AMAish 05 750)

Comments: I love this bike! It's as smooth as a Yamaha, clean, strong and handles beautifully!  Oh... and the TiForce is LOUD! Make sure you get this pipe if you want to scare women, small children, cats and dogs. Good power, though.
Marc

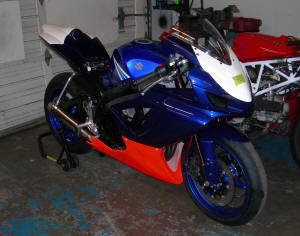

Gary Combs      April 19, 2006

Tuned with Suzuki Denso Kit ECU (Yoshimura EMS Pro)
TiForce exhaust (only has one short muffler)
April 19, 2006
~130 True HP (as compared to ~120 to 124 on an 2005 750)

Comments: Same as the above one. Marc







Absolutely NO carb parts sold in California.

New and improved Suzuki Teka SFI  2

with new TPS display and "MMT" Memory Module Tuner

Finally - Quick, easy, cost effective Suzuki tuning with no expensive "add-on boxes"
Suzuki cruisers and sportbikes

Please click here for more info

Contact Factory Pro
M-F, 9am - 5pm, Pacific time, -7 or -8 GMT

800 869-0497
 USA and Canada

415 883-5620

parts information
 info@factorypro.com

EC997 dynamometer information
 info@factorypro.com

Product Support /Tech SECTION
 click here



Mailing / Shipping address:

Factory Pro
101c Roblar Drive
Novato, CA
USA

And most importantly
Restart back at the HOME page and click on the red box in the top left to find the bike that you want parts for...
 restart at HOME page
