V Stack Install (This is the same install as the 03-14) |
|
 |

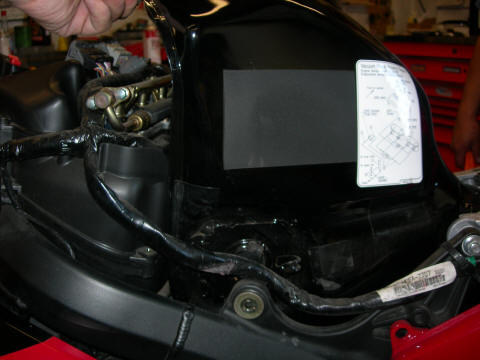

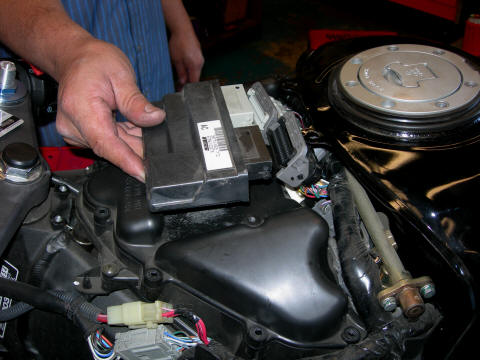

Remove tank cover. Flip gray latch on ECU and unplug the two connectors. |
 |

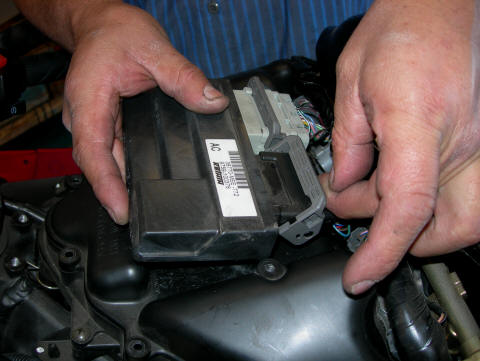

Remove ECU. |
 |
Unbolt tank mounts and prop tank out of the way. |
 |

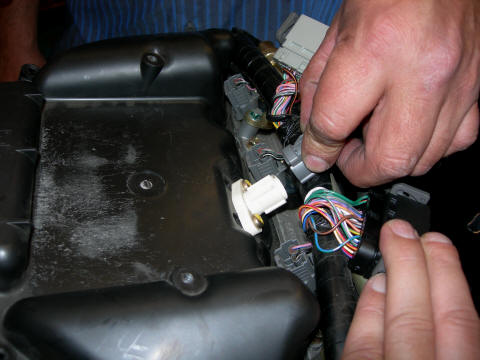

Unplug gray connector. |
 |

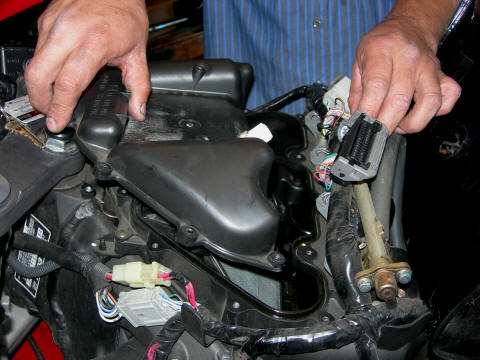

Remove screws and lift off airbox top. |
 |

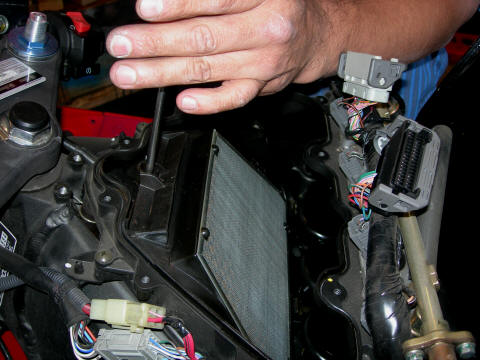

Unscrew air filter mounting
screws and lift out air filter. (How about a new BMC filter?) |
 |

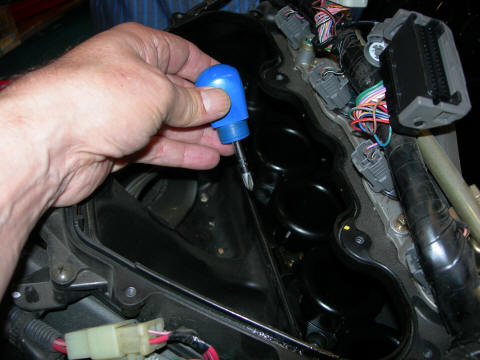

Use a GOOD short #2 Philips and remove the stock velocity stack screws. |
 |

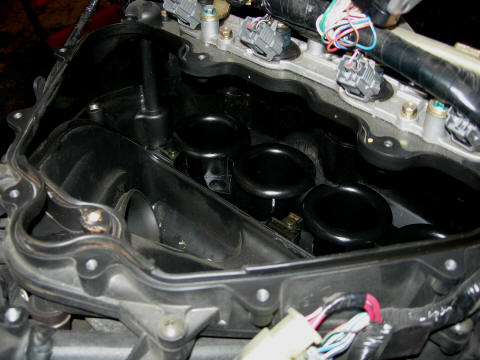

Install your new Factory Pro Superflare V Stacks |
| Reassemble everything in reverse order! Make sure you use a factory Honda service manual for installation. All instructions are for general information, not specific. | |
